Product Summary
The R1LV0408CSB-7LC is a 4-Mbit static RAM organized 512-kword ×8-bit. The R1LV0408CSB-7LC hasrealized higher density, higher performance and low power consumption by employing CMOS processtechnology (6-transistor memory cell). The R1LV0408CSB-7LC offers low power standby powerdissipation; therefore, it is suitable for battery backup systems. It has packaged in 32-pin SOP, 32-pinTSOP II and 32-pin STSOP.
Parametrics
R1LV0408CSB-7LC absolute maximum ratings: (1)Power supply voltage relative to VSS VCC: -0.5 to +4.6 V; (2)Terminal voltage on any pin relative to VSS VT: -0.5 to VCC + 0.5 V; (3)Power dissipation PT: 0.7 W; (4)Operating temperature Topr: -20 to +70 °C; (5)Storage temperature range Tstg: -65 to +150 °C; (6)Storage temperature range under bias Tbias: -20 to +85 °C.
Features
R1LV0408CSB-7LC features: (1)Single 3 V supply: 2.7 V to 3.6 V; (2)Access time: 55/70 ns (max); (3)Power dissipation:; (4)Active: 6 mW/MHz (typ), Standby: 1.5μW (typ); (5)Completely static memory: No clock or timing strobe required; (6)Equal access and cycle times; (7)Common data input and output: Three state output; (8)Directly TTL compatible: All inputs and outputs; (9)Battery backup operation.; (10)Operating temperature: -20 to +70°C.

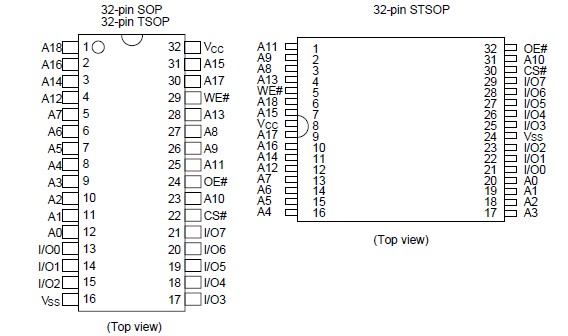

Diagrams
