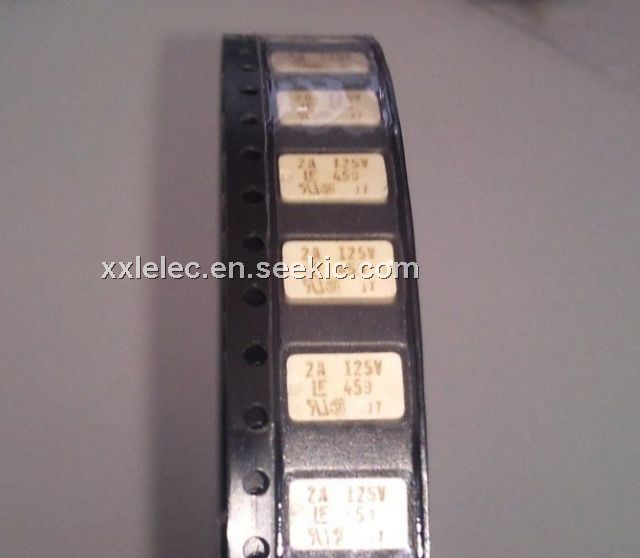

Product Summary

The R459002 is a PICO SMF Very Fast-Acting Fuse provides high performance in a rectangular package suitable for reflow and wave soldering methods.

Parametrics

R459002 absolute maximum ratings: (1)Operating Temperature: -55℃ to 125℃; (2)INTERRUPTING RATINGS: 50 amperes at 125 VAC; 300 amperes at 125 VDC.

Features

R459002 features: (1)Shock: MIL-STD-202, Method 213, Test Condition I (100 G’s peak for 6 milliseconds); (2)Vibration: MIL-STD-202, Method 201 (10–55 Hz, .06 in. total excursion); (3)Salt Spray: MIL-STD-202, Method 101, Test Condition B(48 hrs.); (4)Insulation Resistance (After Opening): MIL-STD-202, Method 302, (10,000 ohms minimum at 100 volts); (5)Resistance to Soldering Heat: MIL-STD-202, Method 210, Test Condition F (10 sec. at 260℃); (6)Thermal Shock: MIL-STD-202, Method 107, Test Condition B (–65 to 125℃); (7)Moisture Resistance: MIL-STD-202, Method 106, High Humidity (90-98 RH), Heat (65°).

Diagrams

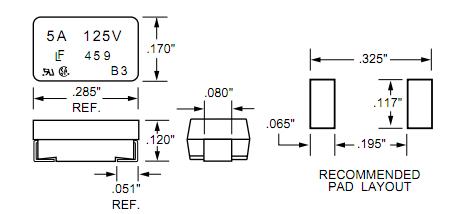

R459002 block diagram
