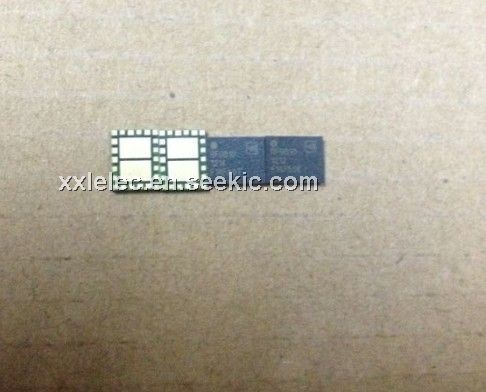

Product Summary

The RF9810 is a Quad Band EDGE +TD-SCDMA Multi-Mode Transmit Module with the capability to support both GSM/GPRS/Linear EDGE (GSM850/EGSM900/DCS1800/PCS1900) and TD-SCDMA (1880MHz to 1920MHz and 2010MHz to 2025MHz) B34/39 frequency bands. The RF9810 continues to build upon RFMDs leading patented PowerStar® Architecture to include such features as a Power Flattening Circuit, VRAMP Filtering, VBATT Tracking, EDGE Low Power Mode. And, RFMD has integrated TD-SCDMA functionality into the RF9810, so it can be used as the transmit module in 3.2V, 50W GSM/TD-SCDMA dual-mode cellular equipment. The RF9810 module includes a multi-function CMOS controller, GaAs HBT power amplifier, and pHEMT front end antenna switch.

Parametrics

RF9810 absolute maximum ratings: (1)Supply Voltage: -0.3 to +6.0 V; (2)Power Control Voltage (VRAMP): -0.3 to +3.0 V; (3)Input RF Power: +10 dBm; (4)Max Duty Cycle: 50 %; (5)Output Load VSWR: 20:1; (6)Operating Temperature: -30 to +85 ℃; (7)Storage Temperature: -55 to +150℃.

Features

RF9810 features: (1)TD-SCDMA Compliant B34/39; (2)+25dBm Output Power TD-SCDMA; (3)Integrated Power Flattening Circuit for Lower Power Variation under Mismatch Conditions; (4)Integrated VBATT Tracking Circuit for Improved Switching Spectrum under Low VBATT Conditions; (5)Digital Bias Control; (6)EDGE Low Current Mode; (7)Symmetrical Rx Ports; (8)High Gain Supports Low Drive Level; (9)Robust 8kV ESD Protection at Antenna Port; (10)Pin Compatible with RF716x GPRS, TxM Family, and Linear EDGE TxMs RF9801/2.

Diagrams

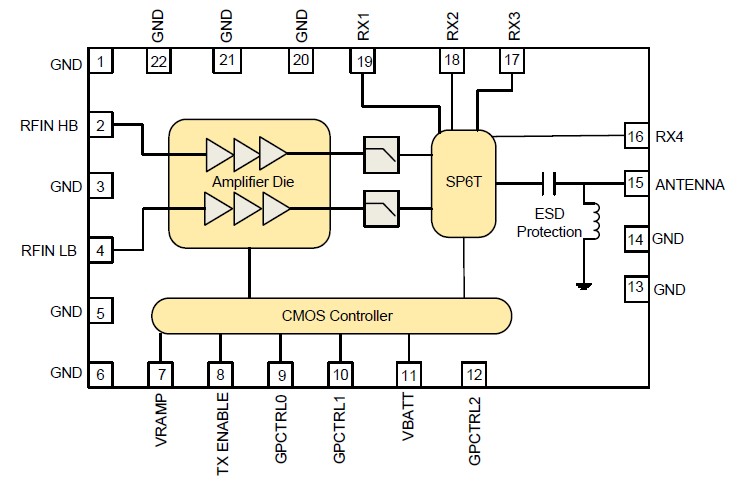

RF9810 block diagram
