Product Summary
The SI8460BA is a P-Channel (D-S) MOSFET. The applications of the SI8460BA include Load Switches, Battery Switches and Charger Switches in Portable Device Applications, Load Switch for 1.2 V Power Line.
Parametrics
SI8460BA absolute maximum ratings: (1)Drain-Source Voltage, VDS: -8V; (2)Gate-Source Voltage, VGS: ± 5V; (3)Continuous Drain Current (TJ = 150℃), TA = 25℃, ID: -4.6A; TA = 70℃: -3.7A; TA = 25℃: -3.6A; TA = 70℃: -2.8A; (4)Pulsed Drain Current, IDM: -15A; (5)Continuous Source-Drain Diode Current, TA = 25℃, IS: -1.4A; (6)TA = 25℃: -0.6A; (7)Maximum Power Dissipation, TA = 25℃, PD: 1.8W; TA = 70℃: 1.1W; TA = 25℃: 0.78W; TA = 70℃: 0.5W; (8)Operating Junction and Storage Temperature Range, TJ, Tstg: -55 to 150℃; (9)Package Reflow Conditionsc, VPR: 260℃; (10)IR/Convection: 260℃.
Features
SI8460BA features: (1)Halogen-free According to IEC 61249-2-21 Definition; (2)TrenchFET Power MOSFET; (3)Ultra-Small 1 mm x 1 mm Maximum Outline; (4)Ultra-Thin 0.548 mm Maximum Height; (5)Compliant to RoHS Directive 2002/95/EC.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

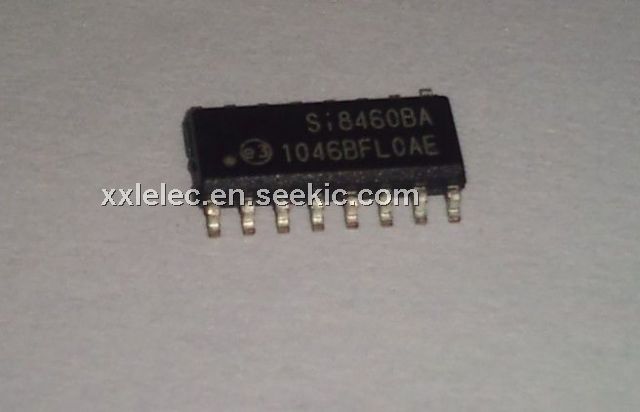

 SI8460BA-A-IS1 |
|
IC ISOLATOR DGTL 6CH 16SOIC |
Data Sheet |
|
|
||||||||||||
 |
Si8460BA-A-IS1R |
Silicon Labs |
Isolator Interface IC 6 Ch 1.0kV Isolator 150M 6/0 |
Data Sheet |
|
|
||||||||||||
|
Si8460BA-B-IS1 |
Silicon Labs |
Isolator Interface IC 6 Ch 1.0kV Isolator 150M 6/0 |
Data Sheet |
|
|
||||||||||||
 |
SI8460BA-B-IS1R |
Silicon Labs |
Isolator Interface IC 6 Ch 1.0kV Isolator 150M 6/0 |
Data Sheet |
|
|
||||||||||||
