Product Summary

The SL5018 is a low power narrow band FM IF. The SL5018 is designed for use in FM dual conversion communication. The SL5018 contains a complete narrow band FM demodulation system operable to less than 2.0V supply voltage. This low power narrow band FM IF system provides the second converter, second IF, demodulator. Filter Amp and squelch circuitry for communications and scanning receivers.

Parametrics

SL5018 absolute maximum ratings: (1)Maximum Supply Voltage VCC(MAX): 10 V; (2)Supply Voltage Range VCC: 2.0 ~ 8.0 V; (3)Detector input Voltage VIN(DET): 1.0 Vp-p; (4)RF Input Voltage(Vcc 􀂇 4.0V)VIN(RF): 1.0 Vrms; (5)Mute Function VMUTE: -0.5 ~ +5.0 Vpeak; (6)Operating Temperature Topr: -20 ~ +70 °C; (7)Storage Temperature Tstg: -65 ~ +150 °C.

Features

SL5018 features: (1)Operating voltage range : 2.0V ~ 8.0V; (2)Low Current consumption ICC=4.0mA Typ. (VCC=4.0V); (3)Excellent input sensitivity (-3dB Limiting = 2.0 μVrms Typ.); (4)Low number of external parts required; (5)Operating frequency up to 60MHz.

Diagrams

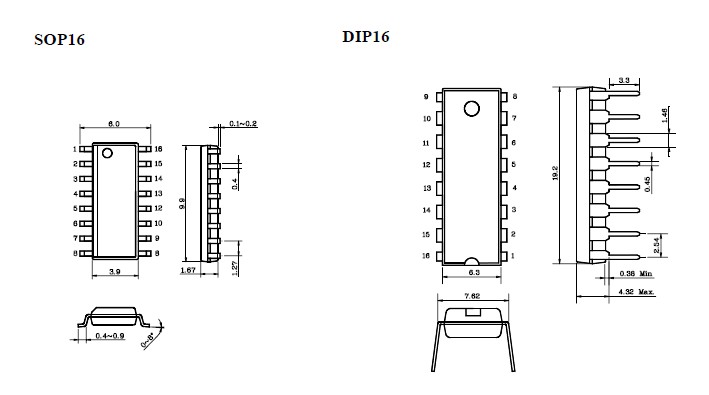

SL5018 pin connection
