Product Summary
The SM6T150CA-E352 is a Transil diode provides high overvoltage protection by clamping action. It’s instantaneous response to transient overvoltages makes them particu-larly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.
Parametrics
SM6T150CA-E352 absolute maximum ratings: (1)PPP, Peak pulse power dissipation (see note 1) Tj initial = Tamb: 600 W; (2)P Power dissipation on infinite heatsink Tamb = 50℃: 5W; (3)IFSM Non repetitive surge peak forward current for unidirectional types tp = 10ms, Tj, initial = Tamb: 100 A; (4)Tstg, Storage temperature range: -65 to +175℃; (5)Tj, Maximum junction temperature: 150℃; (6)TL, Maximum lead temperature for soldering during 10 s: 260℃.
Features
SM6T150CA-E352 features: (1)Peak pulse power: 600 w (10/1000μs); (2)breakdown voltage range: from 6.8V to 220V; (3)uni and bidirectional types; (4)low clamping factor; (5)fast response time; (6)ul recognized.

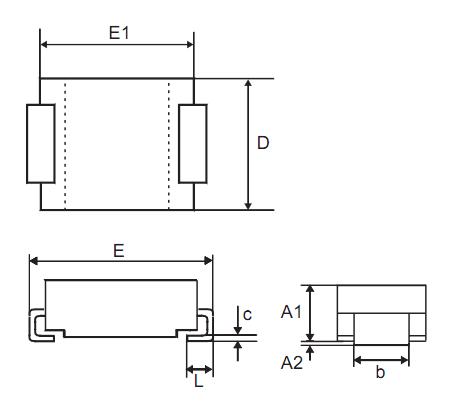

Diagrams
