Product Summary

The SMP7.5A is a Surface Mount TRANSZORB Transient Voltage Suppressor.

Parametrics

SMP7.5A absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000 μs waveform, PPPM: 400 W; (2)Peak pulse current with a 10/1000 μs waveform, IPPM: See table next page A; (3)Peak forward surge current 10 ms single half sine-wave, IFSM: 40 A; (4)Maximum instantaneous forward voltage at 25 A, VF: 2.5 V; (5)Operating junction and storage temperature range, TJ, TSTG: -55 to + 150℃.

Features

SMP7.5A features: (1)Very low profile - typical height of 1.0 mm; (2)Ideal for automated placement; (3)Available in uni-directional; (4)400 W peak pulse power capability with a 10/1000 μs waveform ; (5)Excellent clamping capability; (6)Very fast response time; (7)Low incremental surge resistance; (8)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (9)Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC; (10)Halogen-free according to IEC 61249-2-21 definition.

Diagrams

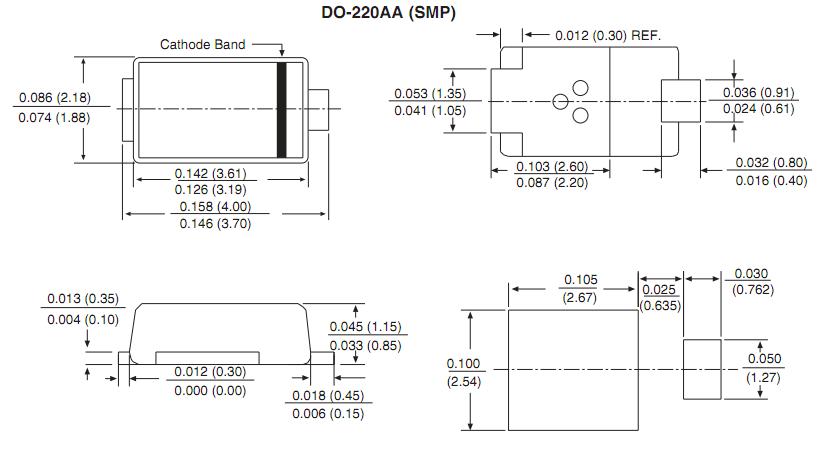

SMP7.5A block diagram
