Product Summary

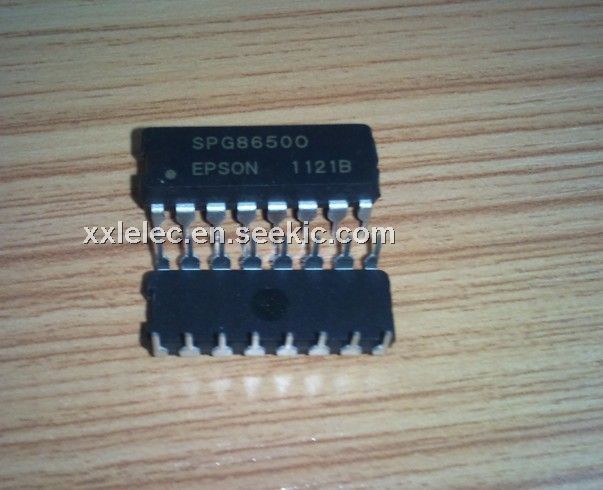

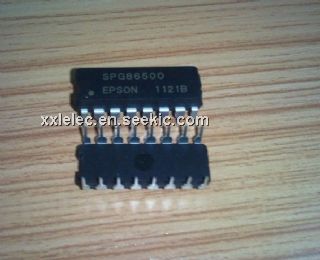

The SPG8650O is a Crystal Oscillator.
Parametrics
SPG8650O absolute maximum ratings: (1)L input voltage, VIL: 0 to 0.8 V; (2)H input voltage, VIH: VDD-1.0 VDD; (3)L input current (Reset), IRL: -30 to -5 μA; (4)H input current (Reset), IRH: 0.5 μA; (5)L input current, IIL: -0.5 μA(input terminal except for Reset); (6)H input current, IIH: 530μA(input terminal except for Reset); (7)L output voltage, VOL: 0.4 V; (8)H output voltage, VOH: VDD-1.0 V ; (9)L output current, IOL: 1.6 mA; (10)H output current, IOH: -40 μA; (11)Output rise time, tTLH: 30 to 60 nS; (12)Output fall time, tTHL: 25 to 50 nS.
Features
SPG8650O features: (1)Capable of selecting 57 varieties of frequency output; (2)Use of CMOS IC enables low current consumption; (3)Easy-to-mount DIP 16 pin type; (4)Most types held ex-stock.
Diagrams
