STM32F217VGT6

STM32F217VGT6, ARM-based 32-bit MCU, 4.0V, 0.5 μs, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: STM32F217VGT6

Brand:: STMicroelectronics - ST | Pack: QFP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:STM32F217VGT6
US $3.00 - 5.00
Quantity:

piece

Product Summary

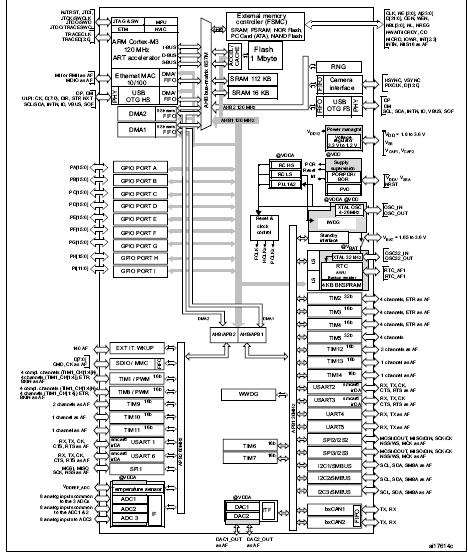

The STM32F217VGT6 is an ARM-based 32-bit MCU. It is based on the high-performance ARM Cortex-M3 32-bit RISC core operating at a frequency of up to 120 MHz. The STM32F217VGT6 incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 128kbytes of system SRAM), up to 4kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix. The STM32F217VGT6 also features an adaptive real-time memory accelerator which allows to achieve a performance equivalent to 0 wait state program execution from Flash memory at a CPU frequency up to 120MHz. This performance has been validated using the CoreMark benchmark.

Parametrics

STM32F217VGT6 absolute maximum ratings: (1)VDD–VSS External main supply voltage (including VDDA, VDD): -0.3 to 4.0V; (2)Input voltage on five-volt tolerant pin: VSS–0.3 to VDD+4V; (3)Variations between different VDD power pins: 50mV; (4)|VSSX-VSS| Variations between all the different ground pins: 50mV.

Features

STM32F217VGT6 features: (1)Up to 1 Mbyte of Flash memory; (2)512 bytes of OTP memory; (3)Up to 128 + 4 Kbytes of SRAM; (4)CRC calculation unit; (5)Clock, reset and supply management; (6)Low power; (7)3 × 12-bit, 0.5 μs ADCs with up to 24 channels and up to 6 MSPS in triple interleaved mode; (8)2 × 12-bit D/A converters; (9)General-purpose DMA: 16-stream controller with centralized FIFOs and burst support; (10)96-bit unique ID; (11)Up to 17 timers; (12)Up to 15 communication interfaces; (13)8- to 14-bit parallel camera interface (48 Mbyte/s max); (14)Analog true random number generator.
