Product Summary
The TLP140G-1 is a tripolar overvoltage protection for telecom line.
Parametrics
TLP140G-1 absolute maximum ratings: (1)Peak pulse current (longitudinal& transversal mode): 10/1000 ms (open circuit voltage waveform 1 kV 10/1000 ms): 100A; (2)Peak pulse current (longitudinal& transversal mode): 8/20 ms (open circuit voltage waveform 4 kV 1.2/50 ms): 250A; (3)Peak pulse current (longitudinal& transversal mode): 2/10 ms (opencircuit voltage waveform 2.5kV 2/10 ms): 500A; (4)ITSM Mains power induction VRMS= 300V,R = 600W t = 200ms: 0.7 A; (5)Tstg Storagetemperature range: - 55 to + 150 °C; (6)Tj Maximum operating junction temperature: 150 °C; (7)TL Maximum lead temperature for soldering during 10 s: 260 °C; (8)TOP Operating temperature range: - 40 to + 85 °C.
Features
TLP140G-1 features: (1)tripolarcrowbar protection; (2)voltage range selected for telecom applications; (3)repetitive peak pulse current : IPP = 100 A (10 / 1000 ms); (4)holding current: IH = 150mA; (5)low capacitance : C = 110 pF typ.; (6)low leakagecurrent: IR = 5mA max.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

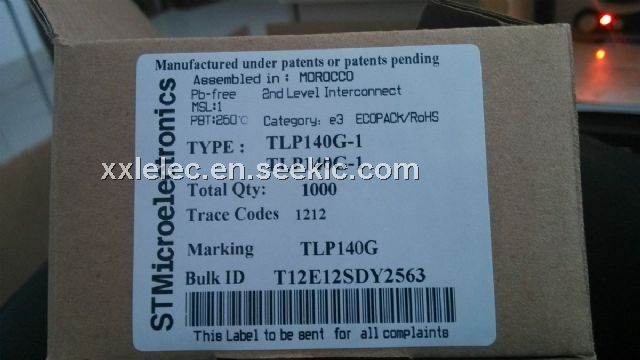

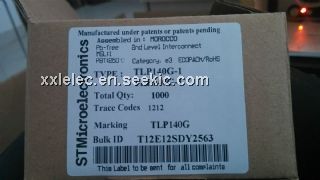

 TLP140G-1 |
STMicroelectronics |
TVS Diode Arrays 140V 50uA Tripolar |
Data Sheet |
Negotiable |
|
||||
