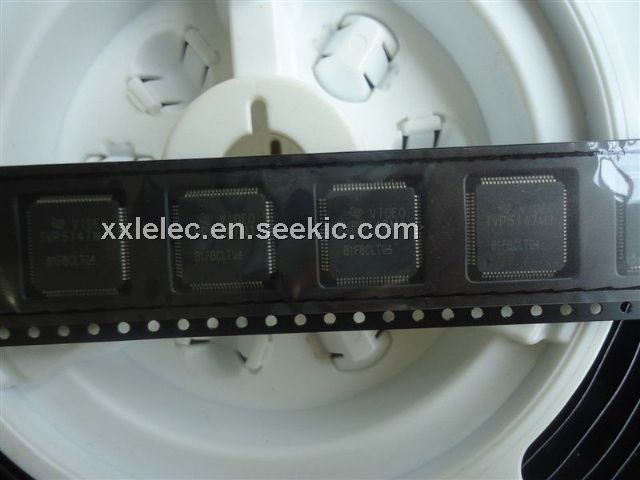

TVP5147M1

TVP5147M1, single-chip digital video decoder, 4 V, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: TVP5147M1

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:TVP5147M1
US $3.00 - 5.00
TVP5147M1PFPR

US $2.13 - 4.16 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TVP5147M1 device is a high-quality, single-chip digital video decoder that digitizes and decodes all popular baseband analog video formats into digital component video. The TVP5147M1 decoder supports the analog-to-digital (A/D) conversion of component YPbPr signals, as well as the A/D conversion and decoding of NTSC, PAL, and SECAM composite and S-video into component YCbCr. This TVP5147M1 includes two 10-bit 30-MSPS A/D converters (ADCs). Preceding each ADC in the device, the corresponding analog channel contains an analog circuit that clamps the input to a reference voltage and applies a programmable gain and offset. A total of 10 video input terminals can be configured to a combination of YPbPr, CVBS, or S-video video inputs.

Parametrics

TVP5147M1 absolute maximum ratings: (1)Supply voltage range: IOVDD to I/O GND: 0.5 V to 4 V; (2)DVDD to DGND: 0.2 V to 2 V; (3)A33VDD (see Note 1) to A33GND: 0.3 V to 3.6 V; (4)A18VDD (see Note 3) to A18GND: 0.2 V to 2 V; (5)Digital input voltage, VI to DGND: 0.5 V to 4.5 V; (6)Digital output voltage, VO to DGND: 0.5 V to 4.5 V; (7)Analog input voltage range AIN to AGND: 0.2 V to 2 V; (8)Operating free-air temperature, TA: 0℃ to 70℃; (9)Storage temperature, Tstg: 65℃ to 150℃.

Features

TVP5147M1 features: (1)Two 30-MSPS, 10-bit A/D channels with programmable gain control; (2)Supports NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60) and SECAM (B, D, G, K, K1, L) CVBS, and S-video; (3)Supports analog component YPbPr video format with embedded sync; (4)10 analog video input terminals for multisource connection; (5)Supports analog video output; (6)Reduced power consumption: 1.8-V digital core, 3.3-V for digital I/O, and 1.8-V/3.3 V analog core with power-save and power-down modes; (7)80-terminal TQFP PowerPAD package.
