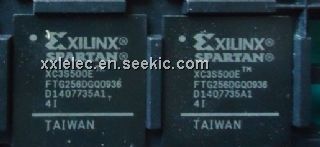

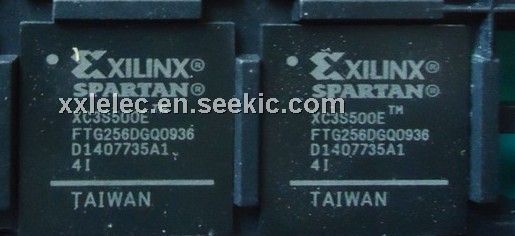

Product Summary

The XC3S500EFTG256DGQ is a spartan-3 field programmable gate array. The XC3S500EFTG256DGQ field-programmable gate array is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. The XC3S500EFTG256DGQ offers densities ranging from 50,000 to five million system gates. The XC3S500EFTG256DGQ builds on the success of the earlier Spartan-IIE family by increasing the amount of logic resources, the capacity of internal RAM, the total number of I/Os, and the overall level of performance as well as by improving clock management functions.

Parametrics

XC3S500EFTG256DGQ absolute maximum ratings: (1)VCCINT Internal supply voltage: -0.5V to 1.32 V; (2)VCCAUX Auxiliary supply voltage: -0.5V to 3.00 V; (3)VCCO Output driver supply voltage: -0.5V to 3.75 V; (4)VREF Input reference voltage: -0.5V to VCCO+0.5 V; (5)TSOL Soldering temperature: 220 ℃; (6)TSTG Storage temperature: -65 to 150 ℃.

Features

XC3S500EFTG256DGQ features: (1)Revolutionary 90-nanometer process technology; (2)Very low cost, high-performance logic solution for high-volume, consumer-oriented applications; (3)Densities as high as 74,880 logic cells; (4)326 MHz system clock rate; (5)Three separate power supplies for the core (1.2V), I/Os (1.2V to 3.3V), and special functions (2.5V); (6)Abundant, flexible logic cells with registers; (7)Wide multiplexers; (8)Fast look-ahead carry logic; (9)Dedicated 18 x 18 multipliers; (10)JTAG logic compatible with IEEE 1149.1/1532 standards.

Diagrams

XC3S500EFTG256DGQ pin connection
