Product Summary
The XC4036XL-3HQ304 is a high-performance, high-capacity Field Programmable Gate Array (FPGA) which provides the benefits of custom CMOS VLSI, while avoiding the initial cost, long development cycle, and inherent risk of a conventional masked gate array. The result of fifteen years of FPGA design experience and feedback from thousands of customers, the XC4036XL-3HQ304 FPGA combines architectural versatility, increased speed, abundant routing resources, and new, sophisticated software to achieve fully automated implementation of complex, high-density, high-performance designs.
Parametrics
XC4036XL-3HQ304 absolute maximum ratings: (1)INIT (High) setup time: 5 ms; (2)D0 - D7 setup time: 20 ns; (3)D0 - D7 hold time: 0 ns; (4)CCLK High time: 45 ns; (5)CCLK Low time: 45 ns; (6)CCLK Frequency: 10 MHz.
Features
XC4036XL-3HQ304 features: (1)XLA Devices Require 3.0 - 3.6 V (VCC); (2)XV Devices Require 2.3- 2.7 V (VCCINT) and 3.0 - 3.6 V (VCCIO); (3)5.0 V TTL compatible I/O; (4)3.3 V LVTTL, LVCMOS compliant I/O; (5)5.0 V and 3.0 V PCI Compliant I/O; (6)12 mA or 24 mA Current Sink Capability; (7)Safe under All Power-up Sequences; (8)XLA Consumes 40% Less Power than XL; (9)XV Consumes 65% Less Power than XL; (10)Optional Input Clamping to VCC (XLA) or VCCIO (XV).

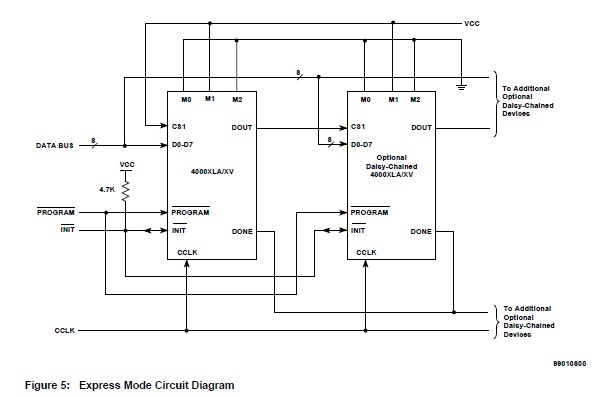

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC4036XL-3HQ304C |
|
IC FPGA C-TEMP 3.3V 3SPD 304HQFP |
Data Sheet |
Negotiable |
|
||||
|
XC4036XL-3HQ304I |
|
IC FPGA I-TEMP 3.3V 3SPD 304HQFP |
Data Sheet |
Negotiable |
|
||||
