Product Summary
The ZL50019QC is a maximum 2,048 x 2,048 channel non-blocking digital Time Division Multiplex (TDM) switch. The ZL50019QC has thirty-two input streams (STi0 - 31) and thirty-two output streams (STio0 - 31). The ZL50019QC can switch 64 kbps and Nx64 kbps TDM channels from any input stream to any output stream. Applications are (1)PBX and IP-PBX; (2)Small and medium digital switching platforms; (3)Remote access servers and concentrators; (4)Wireless base stations and controllers; (5)Multi service access platforms; (6)Digital Loop Carriers; (7)Computer Telephony Integration.
Parametrics
ZL50019QC absolute maximum ratings: (1)I/O Supply Voltage VDD_IO: -0.5 to 5.0 V; (2)Core Supply Voltage VDD_CORE: -0.5 to 2.5 V; (3)Input Voltage VI_3V: -0.5 to VDD + 0.5 V; (4)Input Voltage (5 V-tolerant inputs)VI_5V: -0.5 to 7.0 V; (5)Continuous Current at Digital Outputs Io: 15 mA; (6)Package Power Dissipation PD: 1.5 W; (7)Storage Temperature TS: - 55 to +125 °C.
Features
ZL50019QC features: (1)2048 channel x 2048 channel non-blocking digital Time Division Multiplex (TDM)switch at 8.192 and 16.384 Mbps or using a combination of ports running at 2.048, 4.096, 8.192 and 16.384 Mbps; (2)32 serial TDM input, 32 serial TDM output streams; (3)Integrated Digital Phase-Locked Loop (DPLL)exceeds Telcordia GR-1244-CORE Stratum 4E specifications; (4)Output clocks have less than 1 ns of jitter (except for the 1.544 MHz output); (5)DPLL provides holdover, freerun and jitter attenuation features with four independent reference source inputs; (6)Exceptional input clock cycle to cycle variation tolerance (20 ns for all rates); (7)Output streams can be configured as bidirectional for connection to backplanes; (8)Per-stream input and output data rate conversion selection at 2.048, 4.096, 8.192 or 16.384 Mbps. Input and output data rates can differ; (9)Per-stream high impedance control outputs (STOHZ)for 16 output streams; (10)Per-stream input bit delay with flexible sampling point selection.

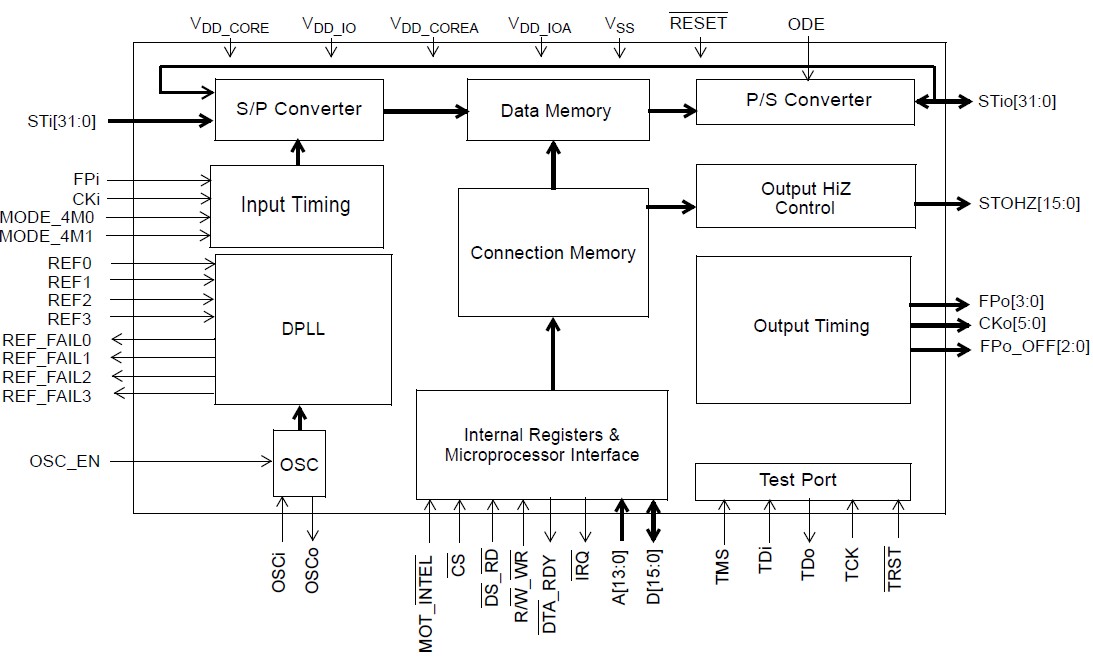

Diagrams
