AD595CQ

ad595cq, complete instrumentation amplifier, 36V, 1 mW, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: AD595CQ

Brand:: Analog Devices - ADI | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:AD595CQ
US $2.30 - 2.50
AD595CQ

US $7.80 - 7.80 / Piece
(0) Remove
Quantity:

piece

Product Summary

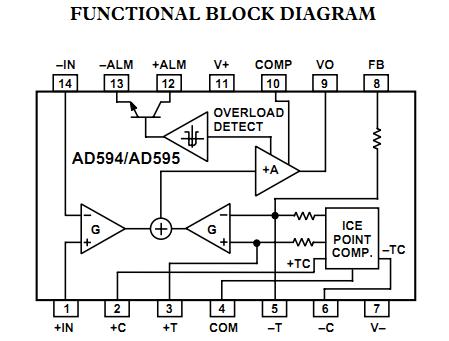

The ad595cq is a complete instrumentation amplifier and thermocouple cold junction compensator on a monolithic chip. It combines an ice point reference with a precalibrated amplifier to produce a high level output directly from a ther-mocouple signal. Pin-strapping options allow the ad595cq to be used as a linear amplifier-compensator or as a switched output setpoint controller using either fixed or remote setpoint control. The ad595cq can be used to amplify its compensation voltage directly, thereby converting it to a stand-alone Celsius transducer with a low impedance voltage output.

Parametrics

ad595cq absolute maximum ratings: (1)+VS to –VS: 36V; (2)Common-Mode Input Voltage: -VS-0.15 to VS; (3)Differential Input Voltage: -VS to VS; (4)Alarm Voltages, +ALM:-VS to -VS+36; –ALM: -VS to VS; (5)Operating Temperature Range: -55 to 125℃; (6)Output Short Circuit to Common: indefinite.

Features

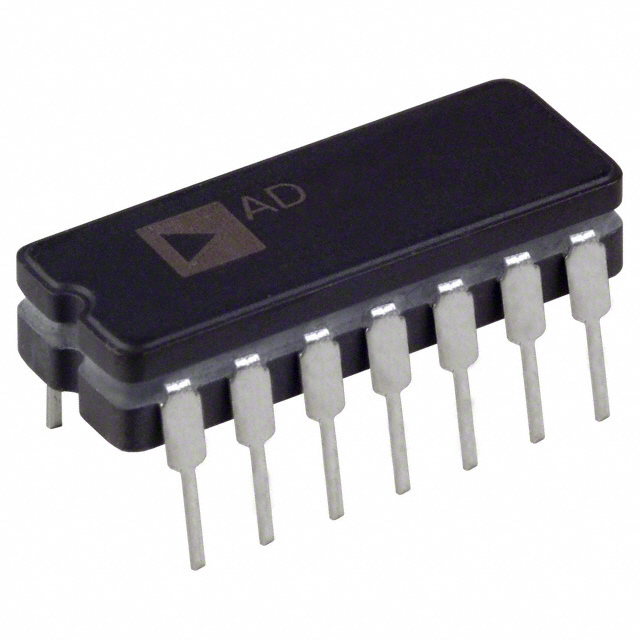

ad595cq features: (1)Pretrimmed for Type J (AD594) or Type K (AD595) Thermocouples; (2)Can Be Used with Type T Thermocouple Inputs; (3)Low Impedance Voltage Output: 10 mV/℃; (4)Built-In Ice Point Compensation; (5)Wide Power Supply Range: +5 V to 615 V; (6)Low Power: <1 mW typical; (7)Thermocouple Failure Alarm; (8)Laser Wafer Trimmed to 1℃ Calibration Accuracy; (9)Setpoint Mode Operation; (10)Self-Contained Celsius Thermometer Operation; (11)High Impedance Differential Input; (12)Side-Brazed DIP or Low Cost Cerdip.
