Product Summary

The ad75019 is a 16 × 16 Crosspoint Switch Array. Any of the X or Y pins may serve as an input or output. Any or all of the X terminals may be programmed to connect to any or all of the Y terminals. The switches can accommodate signals with amplitudes up to the supply rails and have a typical onresistance of 150 Ω. The ad75019 is fabricated in Analog Devices’ BiMOS II process. This epitaxial BiCMOS process features CMOS devices for low distortion switches and bipolar devices for ESD protection.

Parametrics

ad75019 absolute maximum ratings: (1)VDD to DGND: –0.5 to +25.2 V; (2)VSS to DGND: –25.2 to +0.5 V; (3)VCC to DGND: –0.5 to +7.0 V; (4)VDD to VSS: –0.5 to +25.2 V; (5)VCC to VSS: –0.5 to +25.2 V; (6)Digital Inputs to DGND: –0.3 to VCC + 0.5 V; (7)Power Dissipation: 1.0 W max at TA ≤75℃; (8)Operating Temperature Range: 0 to +70 ℃; (9)Storage Temperature: –65 to +150 ℃; (10)Lead Temperature: +300 ℃ max at Soldering, 10 sec.

Features

ad75019 features: (1)256 Switches in a 16×16 Array; (2)Wide Signal Range: to Supply Rails of 24 V or ±12 V; (3)Low On-Resistance: 200 Ω Typ; (4)TTL/CMOS/Microprocessor-Compatible Control Lines; (5)Serial Input Simplifies Interface; (6)Serial Output Allows Cascading for More Channels; (7)Low Power Consumption: 2 mW Quiescent; (8)Compact 44-Lead PLCC.

Diagrams

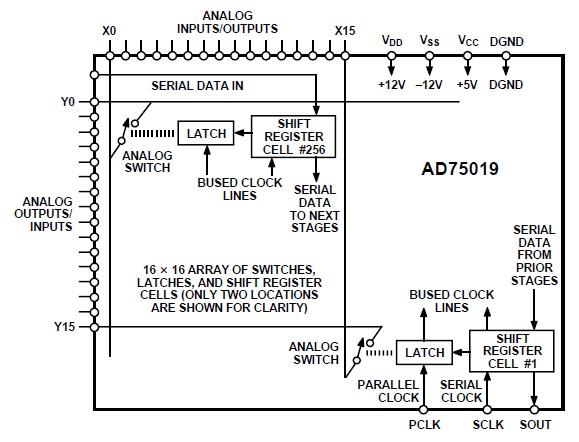

ad75019 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD75019
AD75019
Other

Data Sheet
Negotiable
AD75019JP
AD75019JP

IC CROSSPOINT SWIT 16X16 44PLCC
Data Sheet
0-27: $16.33
AD75019JPZ
AD75019JPZ

IC CROSSPOINT SWIT 16X16 44PLCC
Data Sheet
0-1: $16.64
1-10: $15.39
10-100: $13.15
100-250: $12.07
250-500: $11.48
500-1000: $11.10
