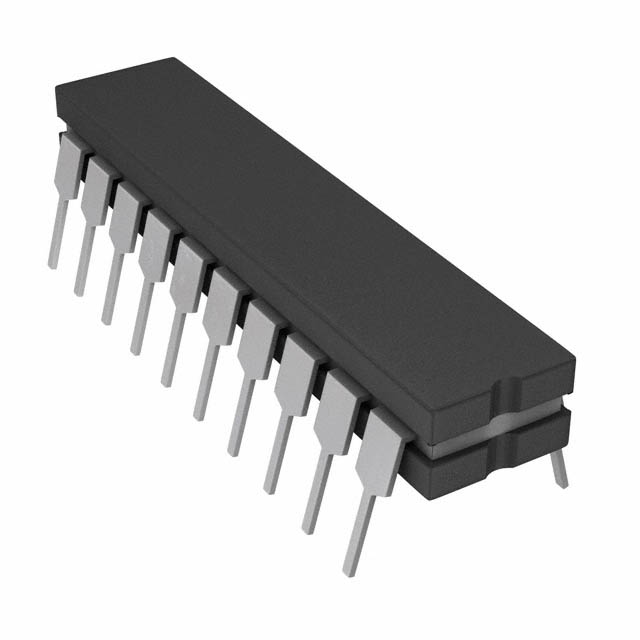

AD7528CQ

ad7528cq, 8-bit digital converter, Analog Devices, DIP, 0 V to +17 V, 450 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: AD7528CQ

Brand:: Analog Devices - ADI | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:AD7528CQ
US $2.30 - 2.50
Quantity:

piece

Product Summary

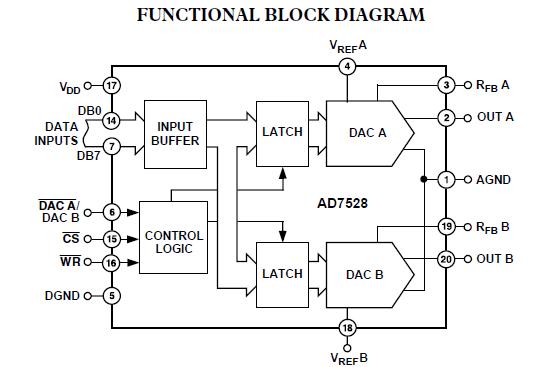

The ad7528cq is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in skinny 0.3" wide 20-lead DIPs and in 20-lead surface mount packages. Separate on-chip latches are provided for each DAC to allow easy microprocessor interface. The ad7528cq’s load cycle is similar to the write cycle of a random access memory and the device is bus compatible with most 8-bit microprocessors, including 6800, 8080, 8085, Z80. The ad7528cq operates from a +5 V to +15 V power supply, dissipating only 20 mW of power. Both DACs offer excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC.

Parametrics

ad7528cq absolute maximum ratings: (1)VDD to AGND: 0 V to +17 V; (2)VDD to DGND: 0 V to +17 V; (3)AGND to DGND: VDD + 0.3 V; (4)DGND to AGND: VDD + 0.3 V; (5)Digital Input Voltage to DGND: –0.3 V to VDD + 0.3 V; (6)VPIN2, VPIN20 to AGND: –0.3 V to VDD + 0.3 V; (7)VREF A, VREF B to AGND: ±25 V; (8)VRFB A, VRFB B to AGND: ±25 V; (9)Power Dissipation (Any Package) to +75℃: 450 mW; (10)Derates above +75℃ by: 6 mW/℃; (11)Operating Temperature Range Industrial Grades: –40℃ to +85℃; (12)Storage Temperature: –65℃ to +150℃; (13)Lead Temperature (Soldering, 10 secs): +300℃.

Features

ad7528cq features: (1)On-Chip Latches for Both DACs; (2)+5 V to +15 V Operation; (3)DACs Matched to 1%; (4)Four Quadrant Multiplication; (5)TTL/CMOS Compatible; (6)Latch Free (Protection Schottkys not Required).
