Product Summary

The ad7528lp is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in skinny 0.3" wide 20-lead DIPs and in 20-lead surface mount packages. Separate on-chip latches are provided for each DAC to allow easy microprocessor interface. The ad7528lp’s load cycle is similar to the write cycle of a random access memory and the device is bus compatible with most 8-bit microprocessors, including 6800, 8080, 8085, Z80. The ad7528lp operates from a +5 V to +15 V power supply, dissipating only 20 mW of power. Both DACs offer excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC.

Parametrics

ad7528lp absolute maximum ratings: (1)VDD to AGND: 0 V to +17 V; (2)VDD to DGND: 0 V to +17 V; (3)AGND to DGND: VDD + 0.3 V; (4)DGND to AGND: VDD + 0.3 V; (5)Digital Input Voltage to DGND: –0.3 V to VDD + 0.3 V; (6)VPIN2, VPIN20 to AGND: –0.3 V to VDD + 0.3 V; (7)VREF A, VREF B to AGND: ±25 V; (8)VRFB A, VRFB B to AGND: ±25 V; (9)Power Dissipation (Any Package) to +75℃: 450 mW; (10)Derates above +75℃ by: 6 mW/℃; (11)Operating Temperature Range Commercial Grades: –40℃ to +85℃; (12)Storage Temperature: –65℃ to +150℃; (13)Lead Temperature (Soldering, 10 secs): +300℃.

Features

ad7528lp features: (1)On-Chip Latches for Both DACs; (2)+5 V to +15 V Operation; (3)DACs Matched to 1%; (4)Four Quadrant Multiplication; (5)TTL/CMOS Compatible; (6)Latch Free (Protection Schottkys not Required).

Diagrams

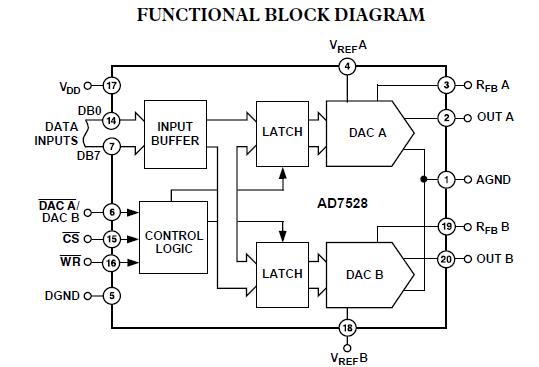

ad7528lp block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD7528LP
AD7528LP

Analog Devices Inc

IC DAC 8BIT DUAL MULT 20-PLCC

Data Sheet

1-21: $9.60
AD7528LPZ
AD7528LPZ


IC DAC 8BIT DUAL MULT 20PLCC

Data Sheet

0-22: $10.90
