Product Summary

The AD8250ARMZ is an instrumentation amplifier with digitally programmable gains that has GΩ input impedance, low output noise, and low distortion making the AD8250ARMZ suitable for interfacing with sensors and driving high sample rate analog-to-digital converters (ADCs) . The AD8250ARMZ has a high bandwidth of 10 MHz, low THD of -110dB and fast settling time of 615 ns (maximum) to 0.001%. Applications of the AD8250ARMZ include: Data acquisition , Biomedical analysis Test and measurement.

Parametrics

AD8250ARMZ absolute maximum ratings: (1) Supply Voltage: ±17V; (2) Output Short-Circuit Current: Indefinite; (3) Common-Mode Input Voltage: +Vs +13V, -Vs -13V; (4) Differential Input Voltage: +Vs +13V, -Vs -13V; (5) Digital Logic Inputs: ±Vs; (6) Storage Temperature Range: -65 to +125°C; (7) Operating Temperature Range: -40 to +85°C; (8) Lead Temperature (Soldering, 10 sec) : 300°C; (9) Junction Temperature: 140°C; (10) θJA (Four-Layer JEDEC Standard Board) : 112°C/W; (11) Package Glass Transition Temperature: 140°C.

Features

AD8250ARMZ features: (1) Small package: 10-lead MSOP; (2) Programmable gains: 1, 2, 5, 10; (3) Digital or pin-programmable gain setting; (4) Wide supply: ±5V to ±15V; (5) Excellent dc performance; (6) Excellent ac performance; (7) Fast settling time: 615ns to 0.001% (maximum) ; (8) High slew rate: 20 V/μs (minimum) ; (9) Low distortion: -110 dB THD at 1kHz; (10) Low power: 4.1mA.

Diagrams

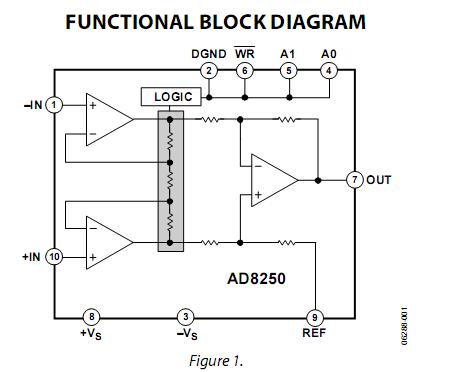

AD8250ARMZ Block Diagram
