AD9834CRUZ

ad9834cruz, 75 MHz low power DDS device, -0.3 V to +6 V, 37.5 MHz, TSSOP, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: AD9834CRUZ

Brand:: Analog Devices - ADI | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:AD9834CRUZ
US $2.30 - 2.50
Quantity:

piece

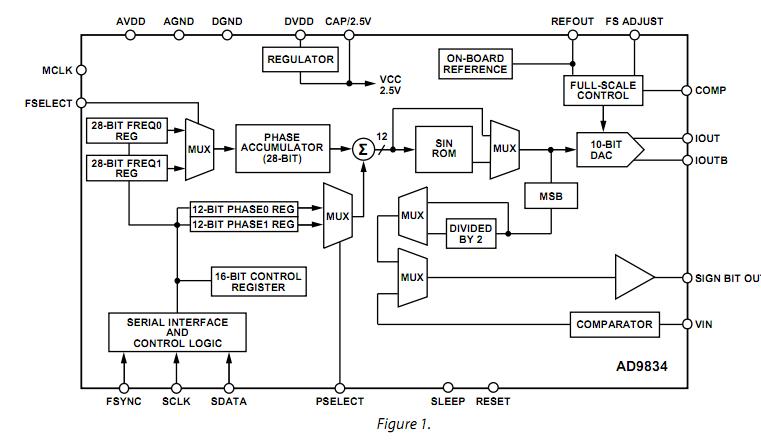

Product Summary

The ad9834cruz is a 75 MHz low power DDS device capable of producing high performance sine and triangular outputs. The ad9834cruz also has an on-board comparator that allows a square wave to be produced for clock generation. Consuming only 20 mW of power at 3 V makes the ad9834cruz an ideal candidate for power-sensitive applications. The applications of the ad9834cruz include Frequency stimulus/waveform generation, Frequency phase tuning and modulation, Low power RF/communications systems, Liquid and gas flow measurement, Sensory applications: proximity, motion, and defect detection, Test and medical equipment.

Parametrics

ad9834cruz absolute maximum ratings: (1)AVDD to AGND: -0.3 V to +6 V; (2)DVDD to DGND: -0.3 V to +6 V; (3)AVDD to DVDD: -0.3 V to +0.3 V; (4)AGND to DGND: -0.3 V to +0.3 V; (5)CAP/2.5V: 2.75 V; (6)Digital I/O Voltage to DGND: -0.3 V to DVDD + 0.3 V; (7)Analog I/O Voltage to AGND: -0.3 V to AVDD + 0.3 V; (8)Operating Temperature Range Industrial: -40 to +105 ℃; (9)Storage Temperature Range: -65 to +150 ℃; (10)Maximum Junction Temperature: 150 ℃; (11)TSSOP Package, θJA Thermal Impedance: 143 ℃/W; (12)Lead Temperature, Soldering (10 sec): 300 ℃; (13)IR Reflow, Peak Temperature: 220 ℃; (14)Reflow Soldering Peak Temperature: 260 ℃.

Features

ad9834cruz features: (1)Narrow-band SFDR ＞ 72 dB; (2)2.3 V to 5.5 V power supply; (3)Output frequency up to 37.5 MHz; (4)Sine output/triangular output; (5)On-board comparator; (6)3-wire SPI interface; (7)Extended temperature range: -40 ℃ to +105 ℃; (8)Power-down option; (9)20 mW power consumption at 3 V; (10)20-lead TSSOP.
