ADV7311KST

adv7311kst, digital-to-analog encoder, 64-Lead LQFP, Analog Devices, +3.0 V to –0.3 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: ADV7311KST

Brand:: Analog Devices - ADI | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:ADV7311KST
US $2.30 - 2.50
Quantity:

piece

Product Summary

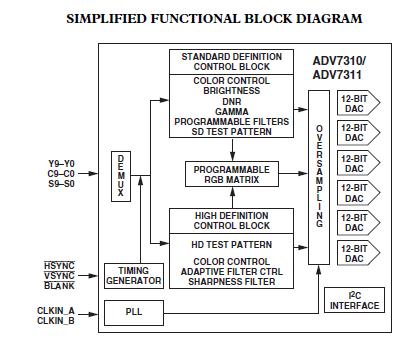

The adv7311kst is a high speed, digital-to-analog encoder on a single monolithic chip. It includes six high speed NSV video D/A converters with TTL compatible inputs. The adv7311kst has separate 8-/10-/16-/20-bit input ports that accept data in high definition and/or standard definition video format. For all standards, external horizontal, vertical, and blanking signals or EAV/SAV timing codes control the insertion of appropriate synchronization signals into the digital data stream and therefore the output signal.

Parametrics

adv7311kst absolute maximum ratings: (1)VAA to AGND: +3.0 V to –0.3 V; (2)VDD to GND: +3.0 V to –0.3 V; (3)VDD_IO to IO_GND: –0.3 V to VDD_IO to +0.3 V; (4)Ambient Operating Temperature (TA): 0℃ to 70℃; (5)Storage Temperature (TS): –65℃ to +150℃; (6)Infrared Reflow Soldering (20 sec): 260℃.

Features

adv7311kst features: (1)Simultaneous SD and HD Inputs and Outputs; (2)Oversampling up to 216 MHz; (3)Programmable DAC Gain Control; (4)Sync Outputs in All Modes; (5)On-Board Voltage Reference; (6)Six 12-Bit NSV Precision Video DACs; (7)2-Wire Serial I2C Interface; (8)Dual I/O Supply 2.5 V/3.3 V Operation; (9)Analog and Digital Supply 2.5 V; (10)On-Board PLL; (11)64-Lead LQFP Package; (12)Lead (Pb) Free Product.
