Product Summary
The adv7840kbcz-5 is a 12-Bit, 170 MHz Video and Graphics Digitizer with 3D Comb Filter Decoder and Quad HDMI Receiver.
Parametrics
adv7840kbcz-5 absolute maximum ratings: (1)high performance power: 170 MHz; (2)HDMI receiver power: 225 MHz.
Features
adv7840kbcz-5 features: (1)12-channel analog input mux; (2)525i-/625i-component analog input; (3)525p-/625p-component progressive scan support; (4)720p-/1080i-/1080p-component HDTV support; (5)Digitizes RGB graphics up to 1600 × 1200 at 60 Hz (UXGA); (6)HDMI/graphics and composite processing; (7)Simultaneous HDMI and graphics synchronization processing; (8)NTSC/PAL/SECAM color standards support; (9)NTSC/PAL 3D comb filter; (10)3D digital noise reduction (DNR); (11)Advanced time-base correction (TBC) with frame synchronization; (12)Interlaced-to-progressive conversion for 525i and 625i; (13)Advanced VBI data slicer, including teletext, CC, and V-chip; (14)IF compensation filter; (15)Analog monitor output; (16)SCART fast blank support, including slow switch detect; (17)Programmable internal antialias filters; (18)Support for weak, poor time base and nonstandard input signals.

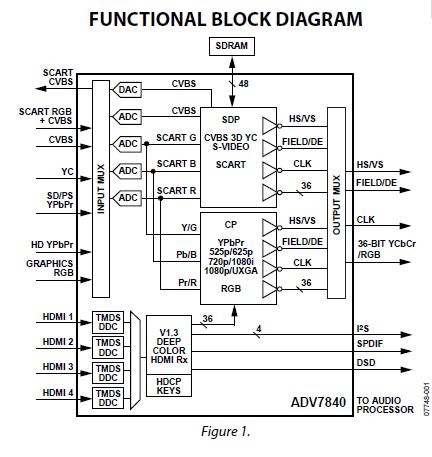

Diagrams
