AK5357ET-E2

stereo A/D Converter, ±10 mA, -0.3 to VA+0.3 V, 16pin TSSOP, Asahi Kasei Microsystems

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: AK5357ET-E2

Brand:: Asahi Kasei Microsystems - AKM | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:AK5357ET-E2
US $2.20 - 2.50
Quantity:

piece

Product Summary

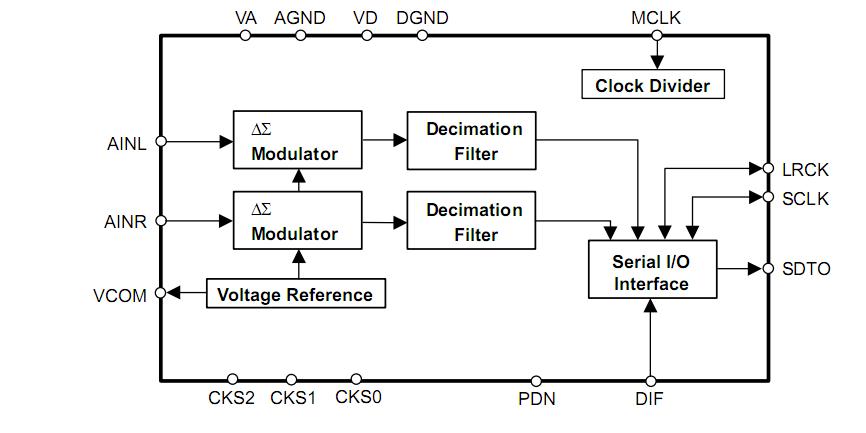

The ak5357et-e2 is a stereo A/D Converter with wide sampling rate of 4kHz ～ 96kHz and is suitable for multimedia audio system. The ak5357et-e2 achieves high accuracy and low cost by using Enhanced dual bit ΔΣ techniques. The AK5357 requires no external components because the analog inputs are single-ended. The audio interface has two formats (MSB justified, I2S) and can correspond to many systems like Karaoke, surround.

Parametrics

ak5357et-e2 absolute maximum ratings: (1)Input Current, Any Pin Except Supplies, IIN: ±10 mA; (2)Analog Input Voltage (AINL, AINR, CKS1 pins), VINA: -0.3 to VA+0.3 V; (3)Digital Input Voltage (All digital input pins), VIND: -0.3 to VD+0.3 V; (4)Ambient Temperature (powered applied), Ta: -40 to 85 °C; (5)Storage Temperature, Tstg: -65 to 150 °C.

Features

ak5357et-e2 features: (1)Stereo ΔΣ ADC ; (2)On-Chip Digital Anti-Alias Filtering; (3)Single-ended Input; (4)Digital HPF for DC-Offset cancel; (5)S/(N+D): 88dB@5V, 86dB@3V for 48kHz; (6)DR: 102dB@5V, 100dB@3V for 48kHz; (7)S/N: 102dB@5V, 100dB@3V for 48kHz; (8)Sampling Rate Ranging from 4kHz to 96kHz; (9)Master Clock: 256fs/384fs/512fs/768fs (4kHz ～ 48kHz); 256fs/384fs (48kHz ～ 96kHz); (10)Input level: TTL/CMOS selectable; (11)Master / Slave Mode; (12)Audio Interface: 24bit MSB justified / I2S selectable; (13)Power Supply: 2.7 ～ 5.5V; (14)Ta = -40 ～ 85°C; (15)Small 16pin TSSOP Package; (16)AK5381 Pin-compatible.
