Product Summary

The at28c17-15pi is a low-power, high-performance Electrically Erasable and Programmable Read Only Memory with easy to use features. The at28c17-15pi is a 16K memory organized as 2,048 words by 8 bits. The at28c17-15pi is manufactured with Atmel’s reliable nonvolatile CMOS technology.

Parametrics

at28c17-15pi absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.

Features

at28c17-15pi features: (1)Fast Read Access Time - 150 ns; (2)Fast Byte Write - 200 ms or 1 ms; (3)Self-Timed Byte Write Cycle: Internal Address and Data Latches, Internal Control Timer, Automatic Clear Before Write; (4)Direct Microprocessor Control: DATA POLLING, READY/BUSY Open Drain Output; (5)Low Power: 30 mA Active Current, 100 μa CMOS Standby Current; (6)High Reliability: Endurance: 10 4 or 10 5 Cycles, Data Retention: 10 Years; (7)5V ± 10% Supply; (8)CMOS & TTL Compatible Inputs and Outputs; (9)JEDEC Approved Byte Wide Pinout; (10)Commercial and Industrial Temperature Ranges.

Diagrams

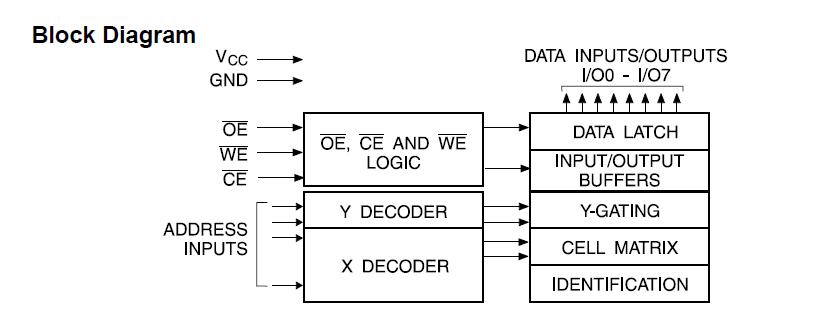

at28c17-15pi block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT28C17-15PI
AT28C17-15PI

Atmel

IC EEPROM 16K 5V 28DIP

Data Sheet

Negotiable
