AT29BV010A-15JU

at29bv010a-15ju, Flash Programmable and Erasable Read Only Memory, -0.6V to +6.25V, 15 mA, TSOP, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: AT29BV010A-15JU

Brand:: ATMEL Corporation - ATMEL | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:AT29BV010A-15JU
US $2.30 - 2.50
Quantity:

piece

Product Summary

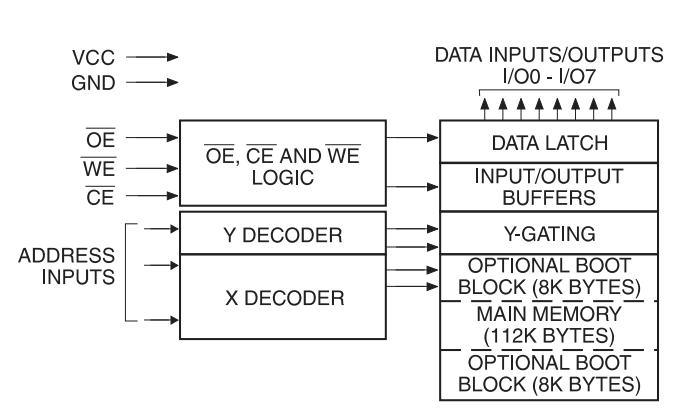

The at29bv010a-15ju is a 2.7-volt only in-system Flash Programmable and Erasable Read Only Memory (Flash). The at29bv010a-15ju’s 1 megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS EEPROM technology, the device of the at29bv010a-15ju offers access times to 120 ns, and a low 54 mW power dissipation. When the device is deselected, the CMOS standby current is less than 50 μA. The device endurance of the at29bv010a-15ju is such that any sector can typically be written to in excess of 10,000 times. The programming algorithm is compatible with other devices in Atmel’s Low Voltage Flash family of products.

Parametrics

at29bv010a-15ju absolute maximum ratings: (1)Temperature Under Bias: -55 ℃ to +125 ℃; (2)Storage Temperature: -65 ℃ to +150 ℃; (3)All Input Voltages with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on A9 with Respect to Ground: -0.6V to +13.5V.

Features

at29bv010a-15ju features: (1)Single Supply Voltage, Range 2.7V to 3.6V; (2)Single Supply for Read and Write; (3)Software Protected Programming; (4)Fast Read Access Time – 120 ns; (5)Low Power Dissipation, 15 mA Active Current; (6)Sector Program Operation, Single Cycle Reprogram; (7)Two 8K Bytes Boot Blocks with Lockout; (8)Fast Sector Program Cycle Time – 20 ms Max; (9)Internal Program Control and Timer; (10)DATA Polling for End of Program Detection; (11)Typical Endurance ＞ 10,000 Cycles; (12)CMOS and TTL Compatible Inputs and Outputs; (13)Green (Pb/Halide-free) Packaging Option.
