AT89S51

at89s51, 8-bit, Microcontroller, 15.0mA, 6.6V, TQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: AT89S51

Brand:: ATMEL Corporation - ATMEL | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:AT89S51
US $2.30 - 2.50
IC AT89S51-24AU

US $0.15 - 0.20 / Piece
(0) Remove
AT89S51-24PC

US $0.15 - 2.40 / Piece
(0) Remove
Quantity:

piece

Product Summary

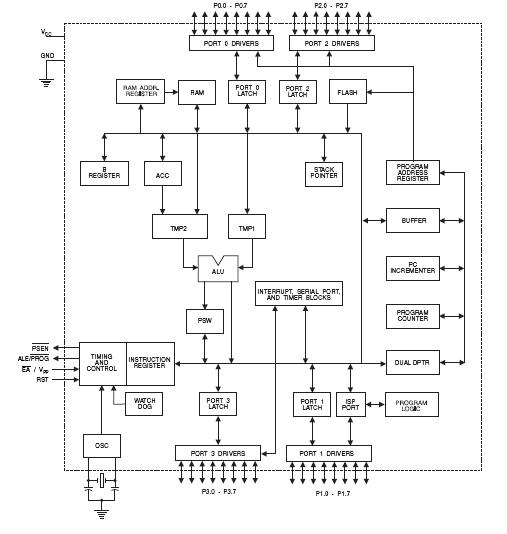

The at89s51 is a low-power, high-performance CMOS 8-bit microcontroller with 4K bytes of In-System Programmable Flash memory. The at89s51 is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. The at89s51 provides the following standard features: 4K bytes of Flash, 128 bytes of RAM, 32 I/O lines, Watchdog timer, two data pointers, two 16-bit timer/counters, a five-vector two-level interrupt architecture, a full duplex serial port, on-chip oscillator, and clock circuitry.

Parametrics

at89s51 absolute maximum ratings: (1)Operating Temperature:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0V to +7.0V; (4) Maximum Operating Voltage: 6.6V; (5) DC Output Current: 15.0mA.

Features

at89s51 features: (1)Compatible with MCS-51 ; (2)Products; (3)4K Bytes of In-System Programmable (ISP) Flash Memory: Endurance: 10,000 Write/Erase Cycles; (4)4.0V to 5.5V Operating Range; (5)Fully Static Operation: 0 Hz to 33 MHz; (6)Three-level Program Memory Lock; (7)128 x 8-bit Internal RAM; (8)32 Programmable I/O Lines; (9)Two 16-bit Timer/Counters; (10)Six Interrupt Sources; (11)Full Duplex UART Serial Channel; (12)Low-power Idle and Power-down Modes; (13)Interrupt Recovery from Power-down Mode; (14)Watchdog Timer; (15)Dual Data Pointer; (16)Power-off Flag; (17)Fast Programming Time; (18)Flexible ISP Programming (Byte and Page Mode); (19)Green (Pb/Halide-free) Packaging Option.
