Product Summary

The b39321-r805-h210 is a Resonator.

Parametrics

b39321-r805-h210 absolute maximum ratings: (1)Operable temperature range, TA: –40/+125 ℃; (2)Storage temperature range, Tstg: –40/+125 ℃; (3)DC voltage, VDC: 12 V; (4)Source power, Ps: 0 dBm.

Features

b39321-r805-h210 features: (1)1-port resonator; (2)Provides reliable, fundamental mode, quartz frequency stabilization i.e. in transmitters or local oscillators; (3)Protection layer: Elpas; (4)AEC-Q200 qualified component family.

Diagrams

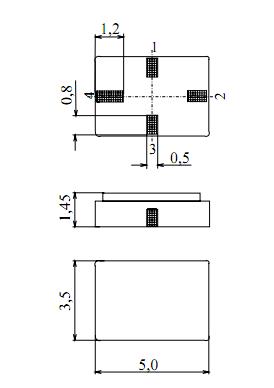

b39321-r805-h210 block diagram
