Product Summary
The b57703m1104a002 is a NTC thermistor. It is ideal for: Measurement of high temperatures on surfaces, e.g. in ovens, on heat sinks and housings.
Parametrics
b57703m1104a002 absolute maximum ratings: (1)upper category temperature: 200 °c; (2)maximum operating temperature (sensor head)top,max: 300 °c; (3)max. power (at 25 °c)p25: 50 mw; (4)resistance tolerance drr/rr: ±3 %; (5)rated temperature tr: 25 °c; (6)dissipation factor (in air)dth approx.: 2 mw/k; (7)thermal cooling time constant (in air)tc approx: 20 s; (8)heat capacity cth approx.: 40 mj/k; (9)test voltage (t = 1 s)vtest: 1250 v ac.
Features

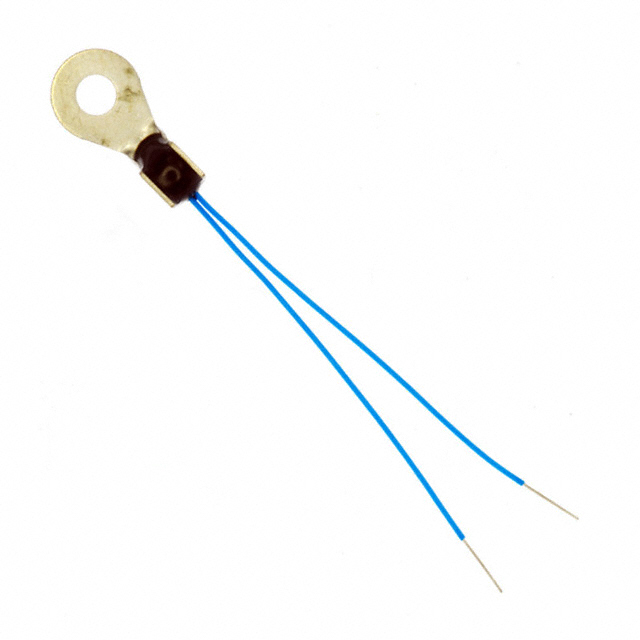

b57703m1104a002 features: (1)ntc thermistor encapsulated in a brass metal-tag case; (2)suitable for temperatures up to 300°C at the sensor head; (3)easy mounting and good thermal coupling; (4)wire heat resistant up to 200 °c (ptfe-insulated wire awg 26 coated with fiberglass sleeve), molex connector operating temperature: 40 to 105°C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B57703M1104A002 |
EPCOS |
Thermistors - NTC 1703/100K/A1 3% E&E NTC Thermistor |
Data Sheet |
|
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
|
B57703M0103A017 |
EPCOS |
Thermistors - NTC 703/10 K/A 17 2% |
Data Sheet |
|
|
||||||||||||||||||
 |
B57703M0103G040 |
|
THERMISTOR NTC 10K OHM 2% PROBE |
Data Sheet |
|
|
||||||||||||||||||
|
B57703M0303A001 |
EPCOS |
Thermistors - NTC 703/30 K/A1 2% |
Data Sheet |
|
|
||||||||||||||||||
|
B57703M1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
B57703M1104A002 |
EPCOS |
Thermistors - NTC 1703/100K/A1 3% E&E NTC Thermistor |
Data Sheet |
|
|
||||||||||||||||||
 |
B57703M303G40 |
EPCOS |
Thermistors - NTC 30k 3964 1% |
Data Sheet |
|
|
||||||||||||||||||
