Product Summary

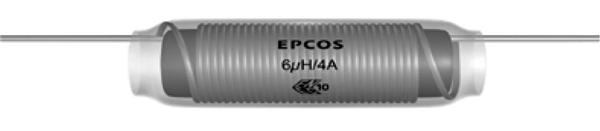

The b82111bc23 is an Inductor. It is ideal for: (1)RF blocking and filtering; (2)Interference suppression in small appliances.
Parametrics
b82111bc23 absolute maximum ratings: (1)Test voltage Vtest: 2500 V AC, 1 min; (2)Inductance tolerance: 20%; (3)Rated temperature TR: +60°C; (4)DC resistance Rtyp: Measured at +20°C; (5)Climatic category: 55/125/56 (to IEC 60068-1); (6)Storage conditions Mounted: –55°C to +125°C; (7)Packaged: –25°C to +40°C, ≤75% RH.
Features
b82111bc23 features: (1)High resonant frequency; (2)High rated current; (3)Suitable for wave soldering; (4)RoHS-compatible; (5)ENEC10 approval.

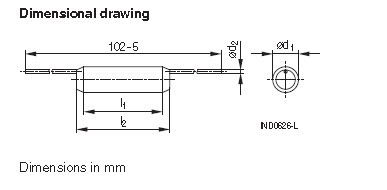

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B82111BC23 |
EPCOS |
RF Inductors 15uH 4.0A 0.024ohms |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |

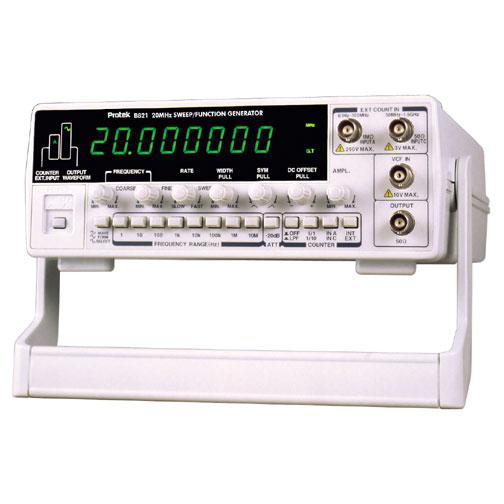

B821 |
Protek |
Function Generators & Synthesizers 20MHz FCN GENERATOR |
Data Sheet |
Negotiable |
|
||||||||||||
|
B82111BC11 |
EPCOS |
RF Inductors 4.0uH 6.0A 0.014ohms |
Data Sheet |
|
|
||||||||||||
 |
B82111BC12 |
EPCOS |
RF Inductors VHF-CHOKE 6 UH 4 A |
Data Sheet |
|
|
||||||||||||
|
B82111BC13 |
EPCOS |
RF Inductors 8.0uH 3.0A 0.025ohms |
Data Sheet |
|
|
||||||||||||
|
B82111BC14 |
EPCOS |
RF Inductors 17uH 2.0A 0.063ohms |
Data Sheet |
|
|
||||||||||||
|
B82111BC16 |
EPCOS |
RF Inductors 3.0uH 9.0A 0.006ohms |
Data Sheet |
|
|
||||||||||||
