Product Summary
The ba3823ls is a 5-channel stereo graphic equalizer. The ba3823ls has two channels, and the five center frequencies for each channel are independently set using external capacitors. The ba3823ls features a wide operating power supply voltage range (VCC = 3.5V to 14V), and are available in compact 24-pin SZIP and SSOP packages, depending on the type. The ba3823ls makes them an ideal choice for home stereo systems, radio cassette players, and car stereos. The application of the ba3823ls includes Five-point stereo graphic equalizer for home and car stereo systems.
Parametrics
ba3823ls absolute maximum ratings: (1)Applied voltage, Vcc: 16 V; (2)Power dissipation, Pd: 500 mW; (3)Operating temperature, Topr: -25 to +75 ℃; (4)Storage temperature, Tstg: -55 to 125 ℃.
Features
ba3823ls features: (1)Allows construction of a five-point stereo graphic equalizer with a single IC; (2)Wide operating power supply voltage range (VCC = 3.5V to 14V); (3)Low current dissipation (IQ = 7mA); (4)Available in compact SZIP/SSOP-A24 packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

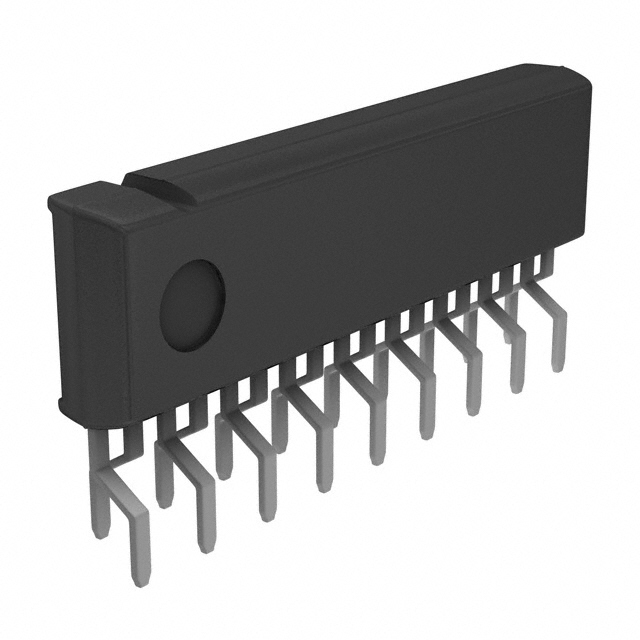

 BA3823LS |
ROHM Semiconductor |
Audio DSPs SPKR AMP 17W 28PIN CLASS D |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
BA3812L |
|
IC EQUALIZER GRAPHIC 5-CH ZIP18 |
Data Sheet |
|
|
||||||
 |
BA3822LS |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|

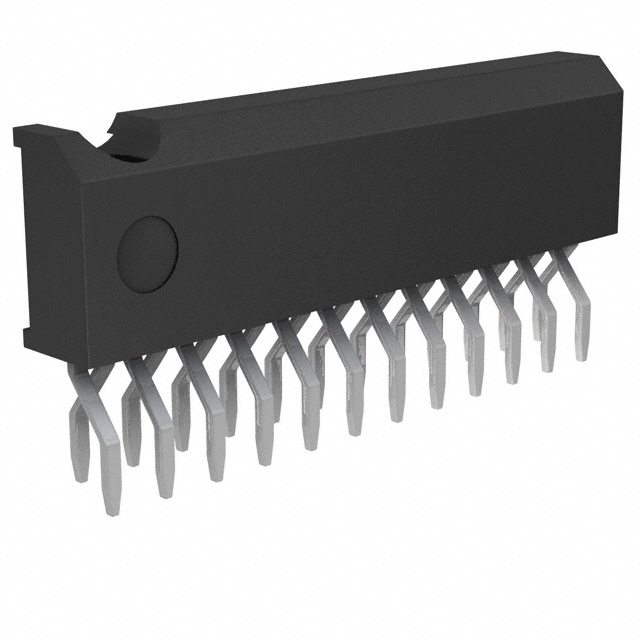

BA3823LS |
ROHM Semiconductor |
Audio DSPs SPKR AMP 17W 28PIN CLASS D |
Data Sheet |
|
|
||||||
|
BA3826S |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
BA3830F-E2 |
ROHM Semiconductor |
Active Filters BAND-PASS FILTER MONAURAL |
Data Sheet |
|
|
||||||
 |
BA3830S |
|
IC BAND-PASS FILTER SDIP18 |
Data Sheet |
|
|
||||||
