BUX39

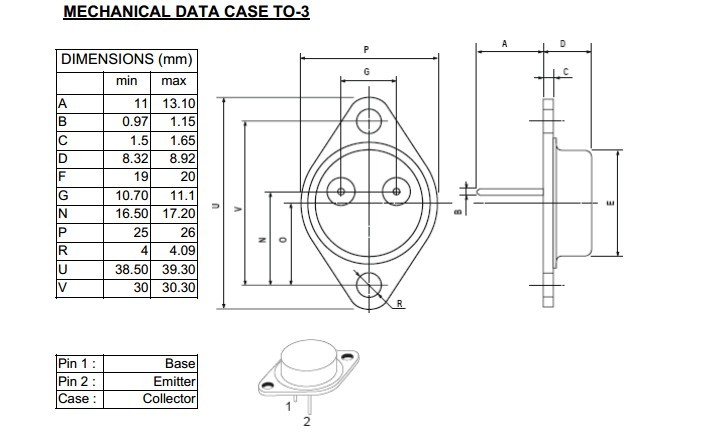

bux39, high current, high speed, high power transistor, 90 V, 40 A, 120 Watts, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: BUX39

Brand:: Motorola, Inc - Motorola | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:BUX39
US $2.30 - 2.50
BUX39 MEXICO/ST /PHILIPS CAN TO-39

US $8.00 - 9.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The bux39 is a high current, high speed, high power transistor.

Parametrics

bux39 absolute maximum ratings: (1)VCEO Collector-Emitter Voltage: 90 V; (2)VCBO Collector-Base Voltage: 120 V; (3)VEBO Emitter-Base Voltage: 7 V; (4)VCEX Collector-Emitter Voltage: 120 V; (5)IC Collector Current: 30 A; (6)ICM Collector Peak Current: 40 A; (7)IB Base Current: 6 A; (8)Pt Total Power Dissipation: 120 Watts; (9)TJ Junction Temperature: 200 °C; (10)TStg Storage Temperature: -65 to +200 °C .

Features

bux39 features: (1)VCEO(SUS)Collector-Emitter Sustaining Voltage (*): 90 V; (2)VEB0 Emitter-Base Voltage IC=0A , IE=50 mA: 7 V; (3)ICEO Collector Cutoff Current: 1 mA; (4)VBE(SAT)Base-Emitter saturation Voltage (*): 2.1 to 2.5 V; (5)IS/B Second breakdown collector current: 4 A; (6)fT Transition frequency: 8 MHz; (7)ton Turn-on time: 0.8 to 1.2 μs.
