Product Summary
The c25m is a 25a automotive rectifier.
Parametrics
c25m absolute maximum ratings: (1)Average Rectified Output Current @TC = 150°C IO: 25 A; (2)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method)IFSM: 400 A; (3)Forward Voltage @IF = 50A VFM: 1.08 V; (4)Peak Reverse Current At Rated DC Blocking Voltage @TA = 25°C IRM: 3.0 μA; (5)Typical Thermal Resistance Junction to Ambient RJA: 26 K/W; (6)Operating and Storage Temperature Range TJ, TSTG: -40 to +150 °C.
Features
c25m features: (1)Diffused Junction; (2)Low Leakage; (3)Low Cost; (4)High Surge Current Capability; (5)Die Size 164 mil HEX .

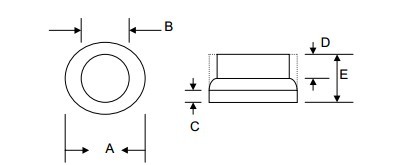

Diagrams
