CDSOD323-T05L

cdsod323-t05l, TVS Diode, ±30 kV, 1 μA, Bourns Electronic Solutions

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: CDSOD323-T05L

Brand:: Bourns Electronic Solutions - Bourns | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:CDSOD323-T05L
US $2.30 - 2.50
Quantity:

piece

Product Summary

The cdsod323-t05l is a TVS Diode. The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. The applications of the cdsod323-t05l include HDMI 1.4, Digital Visual Interface (DVI), USB 3.0 / USB OTG, Memory protection, SIM card ports.

Parametrics

cdsod323-t05l absolute maximum ratings: (1)Unidirectional Peak Pulse Power (tp = 8/20 μs), PPP: 350 W; (2)Bidirectional Peak Pulse Power (tp = 8/20 μs), PPP: 250 W; (3)Operating Temperature, TL: -55 to +150 ℃; (4)Storage Temperature, TSTG: -55 to +150 ℃; (5)ESD Protection, ESD: ±30 kV.

Features

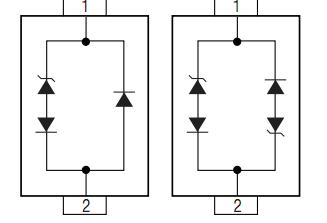

cdsod323-t05l features: (1)Lead free as standard; (2)ESD protection 30 kV max.; (3)Low capacitance 1.0 pF; (4)Protects 1 line; (5)Uni/bidirectional configuration.
