Product Summary
The cm165ye4-12f is a Three Level Inverter IGBT. The cm165ye4-12f has been designed for three level (neutral point clamped) topologies in applications requiring high efficiency operation and improved output waveform quality. The cm165ye4-12f also provides significant benefits in applications where low output noise using small filter components is required or where long motor leads create Standing Wave Ratio (SWR) voltage surge issues. The applications of the cm165ye4-12f include Three Level Inverter Topologies, Solar Power Inverters, High Efficiency UPS, Long Motor Lead Applications.
Parametrics
cm165ye4-12f absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Mounting Torque, Main Terminals, M5 Screw (Max.): 30 in-lb; (4)Mounting Torque, Mounting Holes, M5 Screw (Max.): 30 in-lb; (5)Weight (Typical): 430 Grams; (6)Isolation Voltage, Viso: 2500 Vrms.
Features
cm165ye4-12f features: (1)Smaller Output Voltage Steps Reducing Surge Voltage; (2)Low Output Ripple Current; (3)Lower Modulation Frequency With Same Quality Output Waveform.

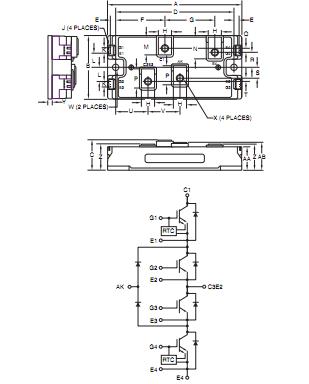

Diagrams
