Product Summary
The cop87l84egm-xe is an 8-Bit microcontroller with UART and three multi-function timers. The cop87l84egm-xe microcontroller uses an 8-bit single chip core architecture fabricated with National Semiconduc-tor M2CMOSTM process technology. The cop87l84egm-xe is a member of this expandable 8-bit core processor family of microcontrollers: Schmitt trigger inputs on Port G.
Parametrics
cop87l84egm-xe absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Voltage at Any Pin: -0.3V to VCC +0.3V; (3)Total Current into VCC Pin (Source): 100 mA; (4)Total Current out of GND Pin (Sink): 110 mA; (5)Storage Temperature Range: -65°C to +140°C.
Features
cop87l84egm-xe features: (1)full duplex UART; (2)three 16-bit timers, each with two 16-bit registers sup-; (3)porting: processor independent pwm mode; (4)quiet design (low radiated emissions); (5)4 kbytes of on-chip ROM; (6)192 bytes of on-chip RAM.

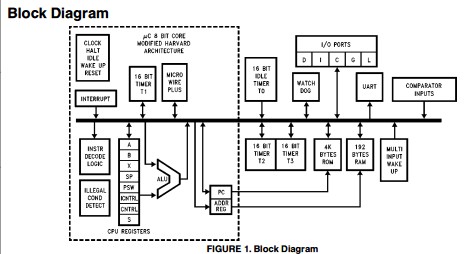

Diagrams
