Product Summary
The cs42528cqz codec provide two analog-to-digital and eight digital-to-analog delta-sigma converters, as well as an integrated S/PDIF receiver, in a 64-pin LQFP package. The cs42528cqz is ideal for audio systems requiring wide dynamic range, negligible distortion and low noise, such as A/V receivers, DVD receivers, digital speaker and automotive audio systems.
Parametrics
cs42528cqz absolute maximum ratings: (1)DC Power Supply Analog VA / VARX: -0.3 to 6.0 V; (2)Input Current (Note 1)I in: 10 Ma; (3)Analog Input Voltage (Note 2)VIN: AGND-0.7 VA+0.7 V; (4)Ambient Operating Temperature(power applied)CS42528-CQZ TA: -20 to 85°C; (5)Storage Temperature Tstg: -65 +150 °C.
Features
cs42528cqz features: (1)Eight 24-bit D/A, two 24-bit A/D Converters; (2)114 dB DAC / 114 dB ADC Dynamic Range; (3)-100 dB THD+N; (4)System Sampling Rates up to 192 kHz; (5)S/PDIF Receiver Compatible with EIAJ CP1201 and IEC-60958; (6)Recovered S/PDIF Clock or System Clock Selection; (7)8:2 S/PDIF Input MUX; (8)ADC High-pass Filter for DC Offset Calibration; (9)Expandable ADC Channels and One-line Mode Support; (10)Digital Output Volume Control with Soft Ramp; (11)Digital +/-15dB Input Gain Adjust for ADC; (12)Differential Analog Architecture; (13)Supports logic levels between 5 V and 1.8 V.

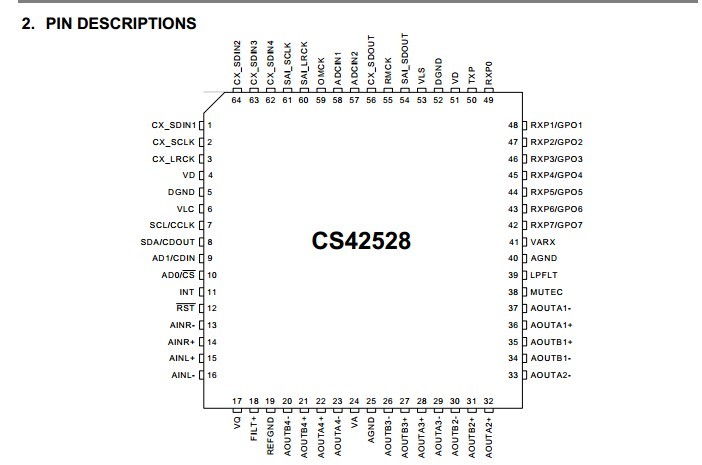

Diagrams
