Product Summary

The cu3225k275g2 is an EPCOS SMD Varistor.

Parametrics

cu3225k275g2 absolute maximum ratings: (1)VRMS: 275V; (2)VDC: 350V; (3)imax 8/20 μs: 400A; (4)Wmax (2 ms): 8.6 J; (5)Pmax: 0.10 W.

Features

cu3225k275g2 features: (1)Electrical equivalents to leaded types SIOV-S05/S07 up to 460 VRMS; (2)Good solderability; (3)PSpice models; (4)Approvals: UL (all types) and CSA ( ≥ K130).

Diagrams

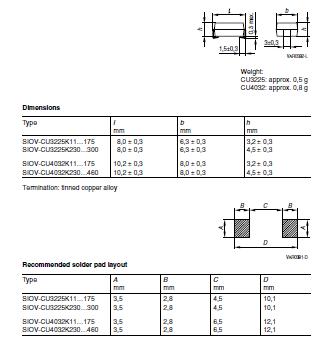

cu3225k275g2 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CU3225K275G2
CU3225K275G2

VARISTOR STD 275VRMS 3225 SMD
Data Sheet
0-1: $0.79
1-10: $0.66
10-100: $0.42
100-500: $0.31
CU3225K275G2K1
CU3225K275G2K1

VARISTOR 275V RMS 3225 SMD
Data Sheet
0-1: $0.81
1-10: $0.66
10-100: $0.47
100-500: $0.35
