Product Summary
The cy7c63231a-pc is a Low-speed USB Peripheral Controller.
Parametrics
cy7c63231a-pc absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -0℃ to +70℃; (3)Supply voltage on VCC relative to VSS: -0.5V to +7.0V; (4)DC Input Voltage: -0.5V to +VCC+0.5V; (5)DC Voltage Applied to Outputs in High Z State: -0.5V to + VCC+0.5V; (6)Maximum Total Sink Output Current into Port 0 and 1 and Pins: 70 mA; (7)Maximum Total Source Output Current into Port 0 and 1 and Pins: 30 mA; (8)Maximum On-chip Power Dissipation on any GPIO Pin: 50 mW; (9)Power Dissipation: 300 mW; (10)Static Discharge Voltage: >2000V; (11)Latch-up Current: >200 mA.
Features
cy7c63231a-pc features: (1)enCoRe USB - enhanced Component Reduction; (2)Flexible, cost-effective solution for applications that combine PS/2 and low-speed USB, such as mice, gamepads, joysticks, and many others; (3)USB Specification Compliance; (4)Watchdog timer (WDT); (5)Low-voltage Reset at 3.75V; (6)Internal brown-out reset for suspend mode; (7)Improved output drivers to reduce EMI; (8)Operating voltage from 4.0V to 5.5VDC; (9)Operating temperature from 0 to 70 degrees Celsius; (10) available in DIE form or 16-pin PDIP; (11) available in 18-pin SOIC, 18-pin PDIP; (12)Industry-standard programmer support.

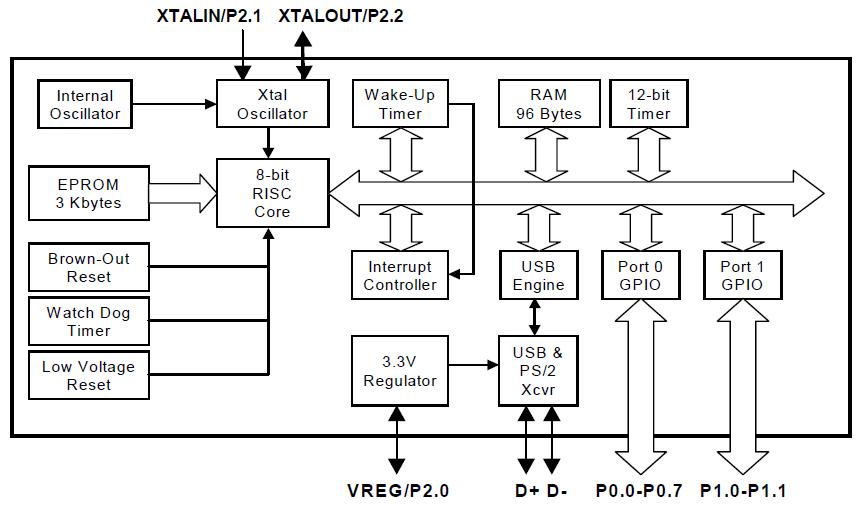

Diagrams
