DAC8412FPC

dac8412fpc, 12-bit voltage output DAC, Analog Devices, 28-lead PLCC, 1000 mW, +5 V, ±15 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: DAC8412FPC

Brand:: Analog Devices - ADI | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:DAC8412FPC
US $2.30 - 2.50
Quantity:

piece

Product Summary

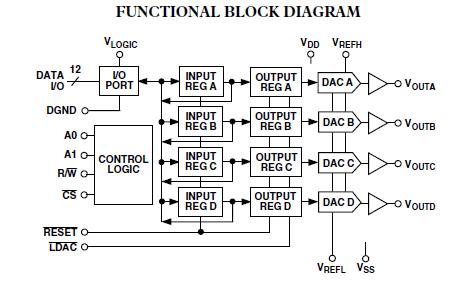

The dac8412fpc is a quad, 12-bit voltage output DAC with readback capability. Built using a complementary BiCMOS process, it offers the user very high package density. The dac8412fpc is available in 28-lead PLCC package. It can be operated from a wide variety of supply and reference voltages with supplies ranging from single +5 V to ±15 V, and references from +2.5 V to ±10 V. Power dissipation is less than 330 mW with ±15 V supplies and only 60 mW with a +5 V supply.

Parametrics

dac8412fpc absolute maximum ratings: (1)VSS to VDD: –0.3 V, +33.0 V; (2)VSS to VLOGIC: –0.3 V, +33.0 V; (3)VLOGIC to DGND: –0.3 V, +7.0 V; (4)VSS to VREFL: –0.3 V, +VSS–2.0 V; (5)VREFH to VDD: +2.0 V, +33.0 V; (6)VREFH to VREFL: +2.0 V, VSS–VDD; (7)Current into Any Pin 4: ±15 mA; (8)Digital Input Voltage to DGND: –0.3 V, VLOGIC +0.3 V; (9)Digital Output Voltage to DGND: –0.3 V, +7.0 V; (10)Operating Temperature Range: –40℃ to +85℃; (11)Dice Junction Temperature: +150℃; (12)Storage Temperature: –65℃ to +150℃; (13)Power Dissipation Package: 1000 mW; (14)Lead Temperature (Soldering, 60 sec): +300℃.

Features

dac8412fpc features: (1)+5 V to ±15 V Operation; (2)Unipolar or Bipolar Operation; (3)True Voltage Output; (4)Double-Buffered Inputs; (5)Center Scale; (6)Fast Bus Access Time; (7)Readback.
