Product Summary
The dm3at-sf-pejm5 is a microSD Card Connector.
Parametrics
dm3at-sf-pejm5 absolute maximum ratings: (1)Insulation resistance: 1000 MΩ min. (Initial value); (2)Withstanding voltage: 500 V AC / 1 minute; (3)Contact resistance: 100mΩ max. (Initial value); (4)Frequency: 10 to 55 Hz; (5)Contact resistance: 40 mΩ max. (change from initial value); (6)Insulation resistance: 100 MΩ min.; (7)Manual soldering: 350℃ for 3 seconds.
Features
dm3at-sf-pejm5 features: (1)Extremely small size; (2)Reverse card insertion protection; (3)Effective ground and shield configuration; (4)Rigid and strong construction; (5)Card detection switch: Normally Open; (6)Card fall-out prevention; (7)Exposed termination leads.

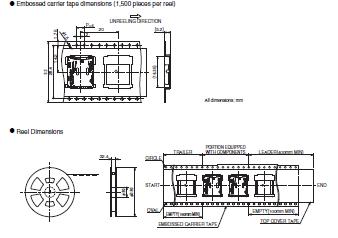

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() DM3AT-SF-PEJM5 |
![]() Hirose Connector |
![]() Memory Card Connectors R/A SMT MICROSD CON PUSH-PUSH TOP BRDMNT |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() DM3AT-SF-PEJM5(11) |
![]() Hirose Connector |
![]() Memory Card Connectors 8P R/A SMT MICRO SD PUSH-PUSH |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() DM3AT-SF-PEJM5(40) |
![]() Hirose Connector |
![]() Memory Card Connectors MICRO SD CD CONN STD SMT PUSHPUSH |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() DM3AT-SF-PEJM5(15) |
![]() Hirose Connector |
![]() Memory Card Connectors 8P R/A SMT MICRO SD PUSH-PUSH |
![]() Data Sheet |
![]()
|
|
