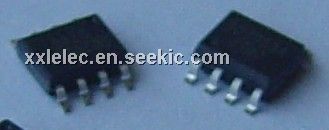

DS1302Z

ds1302z, timekeeping chip, 300 na, 2.0v, soic

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: DS1302Z

Brand:: Dallas Semiconductor - Maxim | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:DS1302Z
US $2.30 - 2.50
Quantity:

piece

Product Summary

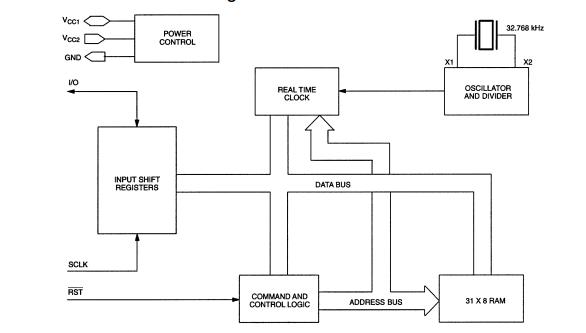

The ds1302z is a Trickle Charge Timekeeping Chip which contains a real time clock/calendar and 31 bytes of static RAM. It communicates with a microprocessor via a simple serial interface. The real time clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with less than 31 days, including corrections for leap year. The clock operates in either the 24–hour or 12–hour format with an AM/PM indicator

Parametrics

ds1302z absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: –0.5V to +7.0V; (2)Operating Temperature: 0℃ to 70℃ or - 40℃ to +85℃ for industrial; (3)Storage Temperature: –55℃ to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds (DIP).

Features

ds1302z features: (1)31 x 8 RAM for scratchpad data storage; (2)Serial I/O for minimum pin count; (3)2.0–5.5V full operation; (4)Uses less than 300 nA at 2.0V; (5)8–pin DIP or optional 8–pin SOICs for surface mount; (6)Simple 3–wire interface; (7)TTL–compatible; (8)Optional industrial temperature range –40℃ to +85℃; (9)DS1202 compatible; (10)Recognized by Underwriters Laboratory.
