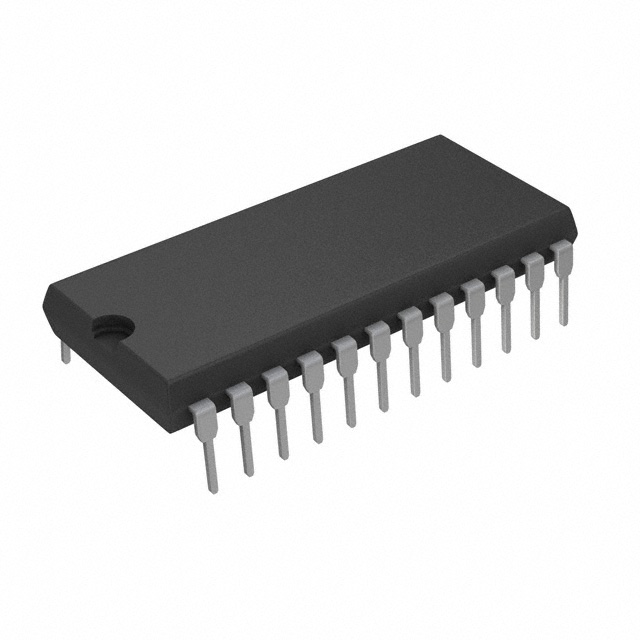

Product Summary

The ds1742-100ind is a full-function, year 2000-compliant (Y2KC), real-time clock/calendar (RTC) and 2k × 8 nonvolatile static RAM. User access to all registers within the ds1742-100ind is accomplished with a bytewide interface as shown in Figure 1. The RTC information and control bits reside in the eight uppermost RAM locations. The ds1742-100ind contains century, year, month, date, day, hours, minutes, and seconds data in 24-hour BCD format. Corrections for the day of the month and leap year are made automatically.

Parametrics

ds1742-100ind absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.3 V to +6.0 V; (2)Storage Temperature Range: -40 to +85 ℃; (3)Soldering Temperature (EDIP, leads): +260 for 10 seconds.

Features

ds1742-100ind features: (1)Integrated NV SRAM, Real-Time Clock, Crystal, Power-Fail Control Circuit and Lithium Energy Source; (2)Clock Registers are Accessed Identically to the Static RAM; These Registers are Resident in the Eight Top RAM Locations; (3)Century Byte Register; (4)Totally Nonvolatile with Over 10 Years of Operation in the Absence of Power; (5)BCD Coded Century, Year, Month, Date, Day, Hours, Minutes, and Seconds with Automatic Leap Year Compensation Valid Up to the year 2100; (6)Battery Voltage Level Indicator Flag; (7)Power-Fail Write Protection Allows for ±10% VCC Power Supply Tolerance; (8)Lithium Energy Source is Electrically Disconnected to Retain Freshness until Power is Applied for the First Time; (9)Standard JEDEC Bytewide 2k × 8 Static RAM Pinout; (10)Quartz Accuracy ±1 Minute a Month at +25 ℃, Factory Calibrated; (11)Underwriters Laboratories Recognized.

Diagrams

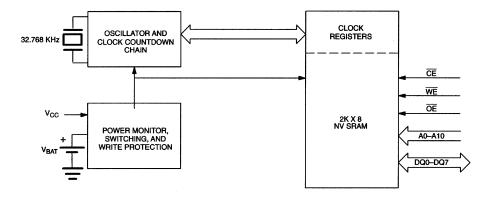

ds1742-100ind block diagram
