Product Summary
The echu1c104gx5 is a Stacked Metallized PPS Film Chip Capacitor.
Parametrics
echu1c104gx5 absolute maximum ratings: (1)Category temp. range (Including temperature-rise on unit surface): -55℃ to +125℃; (2)Rated voltage: 10VDC, 16VDC, 50VDC; (3)Capacitance range: 0.00010 μF to 0.22 μF; (4)Capacitance tolerance: ±2 %; (5)Withstand voltage: Between terminals : Rated volt. (VDC) × 150 % 60 s; (6)Dissipation factor (tan): tanδ ≦ 0.6 % (20℃, 1 kHz).
Features
echu1c104gx5 features: (1)Small in size (minimum size 1.6 mm × 0.8 mm); (2)85 ℃, 85 %RH, W.V. × 1.0 for 500 hours; (3)For reflow soldering; (4)RoHS directive compliant; (5)Recommended Applications: Time-constant, Filtering, Oscillation and resonance.

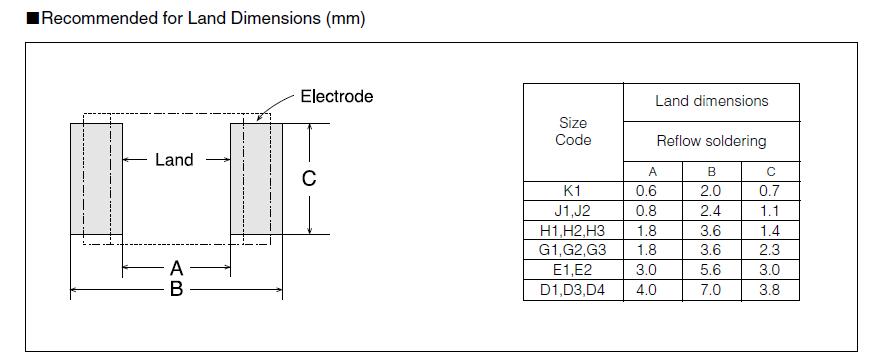

Diagrams
