Product Summary
The ee-sm3 is a Transmissive Photomicrosensor.
Parametrics
ee-sm3 absolute maximum ratings: (1)Emitter Forward current IF: 15 mA; (2)Emitter Reverse voltage VR: 4 V; (3)Detector Collector--Emitter voltage VCEO: 24 V; (4)Collector current IC: 20 mA; (5)Collector dissipation PC: 75 mW; (6)Ambient temperature Operating Topr: -20℃ to 60℃; (7)Ambient temperature Storage Tstg: -20℃ to 80℃; (8)Soldering temperature Tsol: 260℃.
Features
ee-sm3 features: (1)General-purpose model with a 3-mm-wide slot; (2)PCB mounting type; (3)With a red LED as an emitter element and a Photo-Darlington transistor as a detector element.

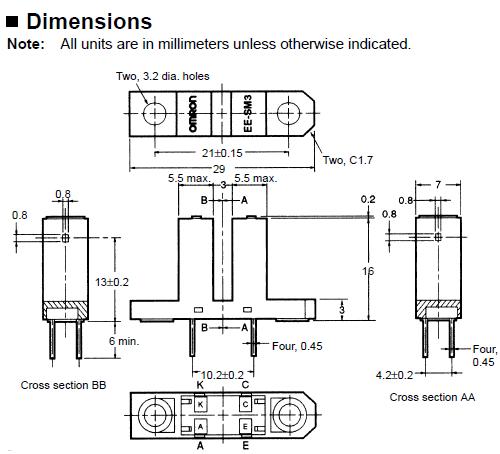

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
EE-SM3 |
Omron Industrial |
Optical Switches, Transmissive, with Phototransistor Output TRANSMISSIVE SENSOR |
Data Sheet |
Negotiable |
|
|||||
EE-SM3B |
Omron Industrial |
Optical Switches, Transmissive, with Phototransistor Output OPTO SENSOR 3MM PCB |
Data Sheet |
Negotiable |
|
