Product Summary

The ee-sm3b is a Transmissive Photomicrosensor.

Parametrics

ee-sm3b absolute maximum ratings: (1)Emitter Forward current IF: 15 mA; (2)Emitter Reverse voltage VR: 4 V; (3)Detector Collector--Emitter voltage VCEO: 24 V; (4)Collector current IC: 20 mA; (5)Collector dissipation PC: 75 mW; (6)Ambient temperature Operating Topr: 20℃ to 60℃; (7)Ambient temperature Storage Tstg: 20℃ to 80℃; (8)Soldering temperature Tsol: 260℃.

Features

ee-sm3b features: (1)General-purpose model with a 3-mm-wide slot; (2)PCB mounting type.; (3)With a red LED as an emitter element and a Photo-Darlington transistor as a detector element.

Diagrams

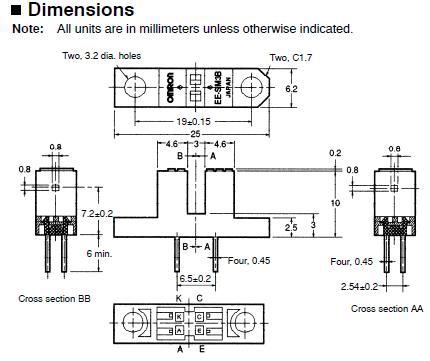

ee-sm3b package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EE-SM3B
EE-SM3B
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output OPTO SENSOR 3MM PCB
Data Sheet
Negotiable
