Product Summary

The eeu-fm1c102 is an aluminum electrolytic capacitor.



Parametrics

eeu-fm1c102 absolute maximum ratings: (1)Category Temp. Range: –40 °C to +105 °C; (2)Rated W.V. Range: 6.3 V.DC to 50 V.DC; (3)Nominal Cap. Range: 22 μF to 6800 μF; (4)Capacitance Tolerance: ±20 % (120 Hz/+20 °C); (5)DC Leakage Cur rent I: < 0.01 CV μA)After 2 minutes.

Features

eeu-fm1c102 features: (1)Low impedance (40 % to 70 % less than FC Se ries); (2)Endurance : 2000 h to 7000 h at +105 °C; (3)RoHS directive compliant.

Diagrams

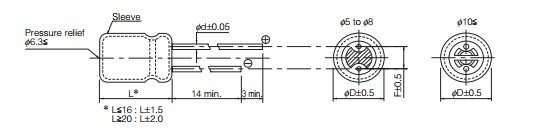

eeu-fm1c102 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EEU-FM1C102
EEU-FM1C102
Panasonic Electronic Components
Aluminum Electrolytic Capacitors - Leaded 1000UF 16V ELECT FM RADIAL
Data Sheet
0-1: $0.30
1-25: $0.24
25-100: $0.20
100-200: $0.20
EEU-FM1C102B
EEU-FM1C102B
Panasonic Electronic Components
Aluminum Electrolytic Capacitors - Leaded Al Lytic CapLow ESR Radial FM Series
Data Sheet
0-1: $0.22
1-25: $0.20
25-100: $0.18
100-250: $0.17
250-500: $0.15
