Product Summary
The el320.240.36 is a thin film electroluminescent (EL) display which is a highperformance alternative to industry-standard quarter-VGA LCDs. The el320.240.36 utilizes Planar’s proprietary Integral Contrast and Brightness Enhancement (ICEBrite) technology to achieve unparalleled image quality without the use of expensive filters. The el320.240.36 excels in a wide range of ambient lighting environments while effectively eliminating the blooming common to other high-bright displays. It consists of an EL glass panel and control electronics assembled into a space-saving, rugged package for easy mounting. The el320.240.36 is easily interfaced using standard 4-bit LCD control signals. Each of the 76,800 pixels is individually addressable to clearly display high information content graphics and text.
Parametrics
el320.240.36 absolute maximum ratings: (1)Logic supply voltage VL: 6 V; (2)Logic supply current at +5 V IL: 0.1 A; (3)Display supply voltage VH: 15 V; (4)Supply current at +12 V IH: 1.0 A; (5)Power consumption 5 V/12 V: 12.0 W; (6)Absolute Input Voltage Range: -0.3 to 5.5 V VL= 5.0 V; (7)Video logic high voltage: 70% to 100% VL All input thresholds are CMOS; (8)Video logic low voltage: 0 to 20% VL; (9)Video logic input current: ±10 μA; (10)Input capacitance: 15 pF.
Features
el320.240.36 features: (1)Excellent visual performance: High brightness and contrast, Wide viewing angle > 160℃; (2)Rapid display response < 1 ms; (3)Space efficient mechanical package; (4)Low EMI emissions; (5)Extremely rugged and durable; (6)Reliable, long operating life; (7)4-bit LCD-type interface.

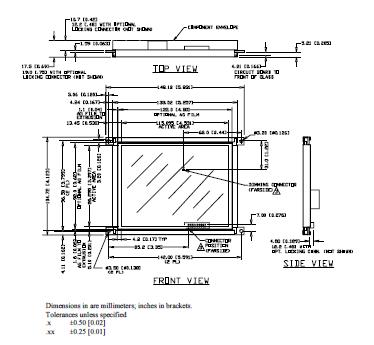

Diagrams
