Product Summary
The el7412cmz is a high performance matched driver. It is capable of delivering peak currents of 2.0 amps into highly capacitive loads and are ideally suited for "Full bridge" and ultrasound applications. The high speed performance is achieved by means of a proprietary "Turbo-Driver" circuit that speeds up input stages by tapping the wider voltage swing at the output. Improved speed and drive capability are enhanced by matched rise and fall delay times. The matched delays maintain the integrity of input-to-output pulse-widths to reduce timing errors and clock skew problems. The el7412cmz is accompanied by a 10 fold reduction in supply currents over bipolar drivers, yet without the delay time problems commonly associated with CMOS devices. Dynamic switching losses are minimized with nonoverlapped drive techniques.
Parametrics
el7412cmz absolute maximum ratings: (1)Supply (V+ to Gnd): 16.5V; (2)Input Pins: -0.3V to +0.3V above V+; (3)Combined Peak Output Current: 8A; (4)Storage Temperature Range: -65℃ to +150℃; (5)Ambient Operating Temperature: -40℃ to +85℃; (6)Operating Junction Temperature: 125℃.
Features
el7412cmz features: (1)Excellent response times; (2)Matched rise and fall times; (3)Reduced clock skew; (4)Low output impedance; (5)Low input capacitance; (6)High noise immunity; (7)Improved clocking rate; (8)Low supply current; (9)Wide operating voltage range; (10)Pb-free available.

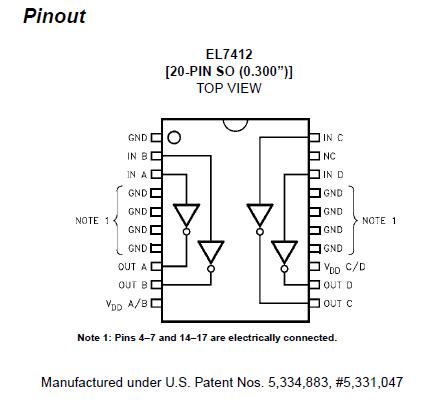

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 EL7412CMZ |
|
IC DRIVER MOSFET QUAD HS 20-SOIC |
Data Sheet |
Negotiable |
|
||||
|
EL7412CMZ-T13 |
|
IC DRIVER MOSFET QUAD HS 20-SOIC |
Data Sheet |
Negotiable |
|
||||
