Product Summary

The f1205s-2w is a dual/single output dc-dc converter. The applications of the f1205s-2w include Where the voltage of the input power supply is fixed (voltage variation ≤ ±10%); Where isolat ion is necessary between input and output (isolat ion voltage ≤3000VDC); Where the regulation of the output voltage and the output ripple noise are not
demanding.

Parametrics

f1205s-2w absolute maximum ratings: (1)Storage humidity range: 95 %; (2)Operating Temp. Range: -40 to 85 ℃; (3)Storage Temp. Range: -55 to 125 ℃; (4)Temp. rise at full load: 15 to 25 ℃; (5)Lead temperature: 300 ℃; (6)Short circuit protection: 1 s; (7)Cooling: Free air convection; (8)Case material: Plastic (UL94-V0); (9)MTBF: 3500 K hours; (10)Weight: 2.1 g.

Features

f1205s-2w features: (1)High Efficiency up to 85%; (2)3000VDC Isolation; (3)SIP Package; (4)Internal SMD construction; (5)No Heat sink Required; (6)Temperature Range: -40 to +85 ℃; (7)No External Component Required; (8)Industry Standard Pinout; (9)RoHS Compliance.

Diagrams

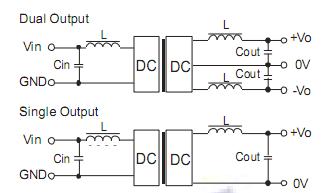

f1205s-2w block diagram
