FAL3F05LL

fal3f05ll, 205mA, 4.5 ~ 6.0VDC, 1.64W, NMB Technologies Corporation, DC Blower Fan Motor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: FAL3F05LL

Brand:: NMB Technologies Corporation - NMB | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:FAL3F05LL
US $2.30 - 2.50
Quantity:

piece

Product Summary

The fal3f05ll is a DC Blower Fan Motor.

Parametrics

fal3f05ll absolute maximum ratings: (1)Weight 0.088 lb (39.92g); (2)Current Rating: 205mA; (3)Voltage Range: 4.5 ~ 6.0VDC; (4)Operating Temperature: -10 ~ 60℃; (5)Life Expectancy: 20000 hrs @ 25℃; (6)Termination Style: 28.5 dB; (7)Voltage - Rated: 5VDC; (8)Power (watts): 1.64W.

Features

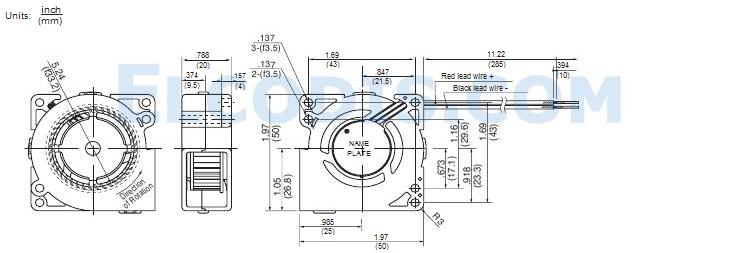

fal3f05ll features: (1)Fan Type: Blower; (2)Size / Dimension: Square - 50mm L x 50mm H x 20mm W; (3)Rpm: 4400 RPM; (4)Noise: 28.5 dB; (5)Static Pressure: 0.319 in H2O (79.5 Pa); (6)Air Flow: 3.9 CFM (0.110m3/min); (7)Termination: 2 Wire Leads; (8)Bearing Type: Ball; (9)Lead Free Status / RoHS Status: Lead free / RoHS Compliant.
